3226830000 - Weidmüller

Description: OMNIMATE Data - USB jack, PCB plug-in connector, USB 2.0, Type C, 480 Mbps, SMD solder connection, 90°, Plugging cycles: ≥ 10000, Number of poles: 16, LCP, Gold over Ni, Reel, 10.000 cycles

Download 3226830000 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 3226830000 model

Email notifications will be applied after download.

Send part feedback

Symbol

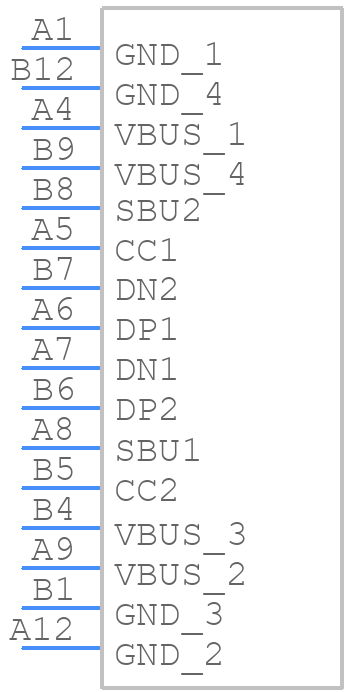

3226830000 - Weidmüller - PCB symbol

PCB Footprints

3226830000 - Weidmüller PCB footprint - Other - Other - 3226830000_SLOT

Datasheet Download Datasheet
Stock & Prices Price & Stock for 3226830000
Part Number 3226830000
Manufacturer Weidmüller
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - 3226830000_SLOT
Released Date Jul 28, 2026
Last Modified Date Jul 28, 2026 4:29 PM UTC
Pinout / Pin List Click Here (Member Only)

3226830000 Details

Manufacturer Part Number:
3226830000
Manufacturer:
Weidmüller Interface GmbH & Co. KG
