325412000-00 - TE Connectivity

Description: Dimensions: Dimensions .24 x .25 INCH | Dimensions 6.2 x 6.4 MM | Electrical Characteristics: Board Level Pressure Sensor Supply Voltage 5 V | Operation/Application: Board Level Pressure Sensor Accuracy ±0.05% or ±0.2% Non-linearity | Pressure 12000 MBAR | Other: Sensor Options No Option | Packaging Features: Board Level Pressure Sensor Package Surface Mountable | Product Type Features: Board Level Pressure Sensor Type mV Output Pressure Sensors | Board Level Pressure Sensor Style Absolute | Usage Conditi

Download 325412000-00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

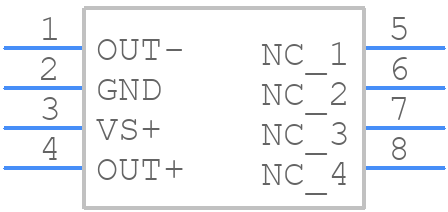

325412000-00 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
325412000-00 - TE Connectivity PCB footprint - Other - Other - 325412000-00-1
click to zoom
3D Models
325412000-00 - TE Connectivity - 3D model - Other - 325412000-00-1
click to zoom

325412000-00 Details

  • Manufacturer Part Number:

    325412000-00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    16 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body Breadth:

    6.2 mm

  • Body Height:

    2.88 mm

  • Body Length or Diameter:

    6.4 mm

  • Housing:

    CERAMIC

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    40-120mV

  • Output Type:

    VOLTAGE OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    HOLE

  • Pressure Range-Max:

    174.04 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    20 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

325412000-00 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 325412000-00 connector is designed to withstand high-vibration environments, but it's recommended to consult with TE Connectivity's application engineers for specific guidance.
  • The operating temperature range for the 325412000-00 connector is -40°C to 125°C (-40°F to 257°F).
  • The 325412000-00 connector is designed to be resistant to harsh environments, but it's recommended to consult with TE Connectivity's application engineers to determine the suitability for specific applications.
  • The mating cycle life of the 325412000-00 connector is 500 cycles minimum, but this can vary depending on the application and usage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

325412000-00 Overview

Use the download button to access the 325412000-00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 32541, or try a keyword search, such as Pressure Sensors
