Part Image

325540009-50 - TE Connectivity

Description: Dimensions: Dimensions 6.2 x 6.4 MM | Dimensions .24 x .25 INCH | Electrical Characteristics: Board Level Pressure Sensor Supply Voltage 2.2 – 3.6 V | Operation/Application: Board Level Pressure Sensor Accuracy ±1.5mbar | Output/Span 16 bit ADC | Resolution .1 | Pressure 1000 MBAR | Other: Sensor Options No Option | Packaging Features: Board Level Pressure Sensor Package Surface Mountable | Product Type Features: Board Level Pressure Sensor Style Absolute | Board Level Pressure Sensor Type Digital Pressu

Download 325540009-50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

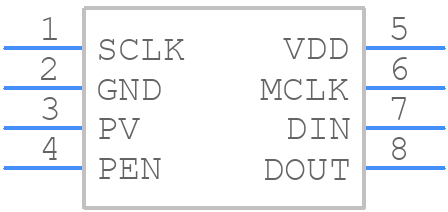

Symbol
325540009-50 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
325540009-50 - TE Connectivity PCB footprint - Other - Other - 325540009-50-3
click to zoom
3D Models
325540009-50 - TE Connectivity - 3D model - Other - 325540009-50-3
click to zoom

325540009-50 Details

  • Manufacturer Part Number:

    325540009-50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Body Breadth:

    6.2 mm

  • Body Height:

    6.4 mm

  • Body Length or Diameter:

    6.2 mm

  • Housing:

    STAINLESS STEEL

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    3-WIRE SERIAL INTERFACE

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    HOLE

  • Pressure Range-Max:

    15.95 Psi

  • Pressure Range-Min:

    0.145 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    35000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.2 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

325540009-50 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 325540009-50 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and mounting.
  • The operating temperature range for the 325540009-50 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 325540009-50 connector is suitable for outdoor use, but it's recommended to follow TE Connectivity's guidelines for environmental sealing and protection.
  • It's not recommended to use a different wire gauge than specified in the datasheet, as it may affect the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

325540009-50 Overview

Use the download button to access the 325540009-50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 32554, or try a keyword search, such as Pressure Sensors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
