Part Image

3296W-1-205LF - Bourns

Description: Bourns 3296W Series 25-Turn Through Hole Trimmer Resistor with Pin Terminations, 2MΩ ±10% 1/2W ±100ppm/°C Top Adjust

Download 3296W-1-205LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

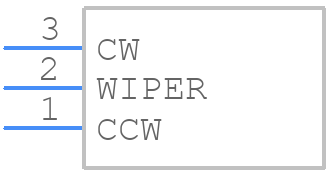

Symbol
3296W-1-205LF - Bourns - PCB symbol
click to zoom

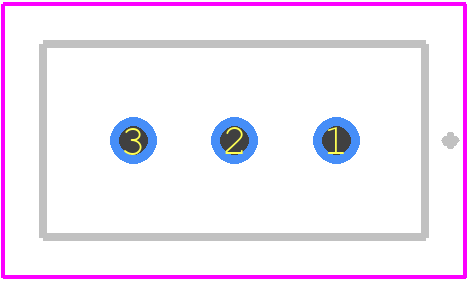

PCB Footprints
3296W-1-205LF - Bourns PCB footprint - Other - Other - 3296W-1
click to zoom
3D Models
3296W-1-205LF - Bourns - 3D model - Other - 3296W-1
click to zoom

3296W-1-205LF Details

  • Manufacturer Part Number:

    3296W-1-205LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.50

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.5

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SCREW

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.51 mm

  • Lead Length:

    6.4 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Number of Turns:

    25

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    10.03 mm

  • Package Length:

    9.53 mm

  • Package Style:

    Radial

  • Package Width:

    4.83 mm

  • Packing Method:

    TUBE

  • Rated Power Dissipation (P):

    0.5 W

  • Rated Temperature:

    70 °C

  • Resistance:

    2000000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    TRIMMER

  • Rotational Angle:

    9000 deg

  • Surface Mount:

    NO

  • Technology:

    CERMET

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

  • Tolerance:

    10%

  • Working Voltage:

    300 V

3296W-1-205LF Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.
  • The 3296W-1-205LF is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). However, it's still important to follow proper PCB design and shielding practices to ensure optimal noise reduction.
  • The 3296W-1-205LF is rated for operation from -40°C to +125°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
  • While the 3296W-1-205LF is a high-quality component, it's essential to consult with Bourns Inc or a qualified representative to determine its suitability for high-reliability or aerospace applications, which may require additional testing and certification.
  • It's essential to follow proper storage and handling procedures to prevent damage and ensure the component's reliability. Bourns Inc provides guidelines for storage and handling in their documentation and application notes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3296W-1-205LF Overview

Use the download button to access the 3296W-1-205LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3296W, or try a keyword search, such as Trimmer Potentiometers
