Bourns provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, reduce electromagnetic interference (EMI), and prevent mechanical stress on the component.
To prevent damage, handle the 3315C-001-006L by the body, avoiding touching the leads or electrical contacts. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD). For rework, use a low-temperature soldering iron and a solder with a low melting point to avoid overheating the component.
While the datasheet provides a recommended operating temperature range, the maximum operating temperature range may be higher. According to Bourns, the 3315C-001-006L can operate up to 150°C, but this may affect its performance and lifespan. Consult with Bourns or a qualified engineer for specific guidance.
The 3315C-001-006L is designed to withstand moderate vibration and shock. However, for extreme environments, it's essential to consult with Bourns or a qualified engineer to determine the component's suitability. Additional testing or custom designs may be required to ensure the component's reliability.
To troubleshoot issues with the 3315C-001-006L, start by reviewing the datasheet and application notes. Check for proper PCB layout, soldering, and assembly. Use diagnostic tools, such as oscilloscopes or logic analyzers, to identify the root cause of the issue. Consult with Bourns or a qualified engineer for further guidance and support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
3315C-001-006L Overview

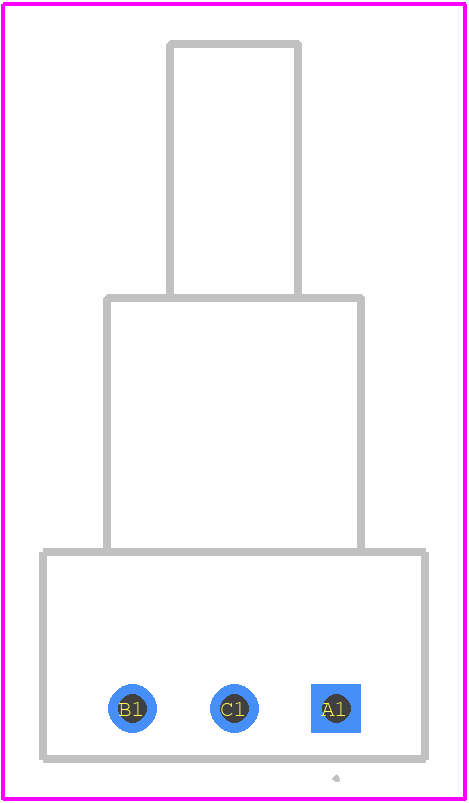

Use the download button to access the 3315C-001-006L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3315C,
or try a keyword search, such as Optical Position Encoders
