Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and mechanical stability.
The 3315C-001-016L has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate heat sinking, such as a thermal pad or heat sink, and to follow proper PCB design and layout guidelines to minimize thermal resistance.
The 3315C-001-016L has a maximum rated voltage of 16V. Exceeding this voltage may damage the device or affect its reliability. It's essential to ensure that the operating voltage is within the specified range to maintain the device's performance and lifespan.
The 3315C-001-016L is designed for general-purpose applications and may not be suitable for high-frequency applications. Bourns recommends using their high-frequency inductors, such as the 3315H series, for applications above 1 MHz.
To select the correct inductor value, consider factors such as the operating frequency, current requirements, and desired inductance value. Bourns provides inductor selection guides and tools to help engineers choose the optimal inductor for their specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
3315C-001-016L Overview

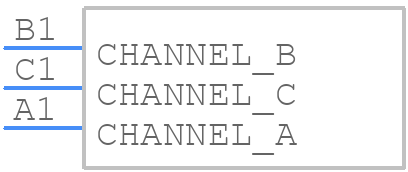

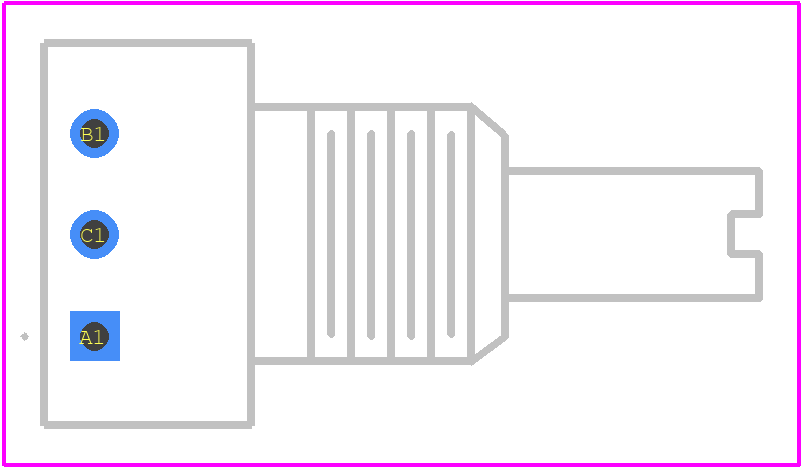

Use the download button to access the 3315C-001-016L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3315C,
or try a keyword search, such as Optical Position Encoders
