333-2UYD/S530-A3-L - Everlight

Description: Yellow 589nm LED Indication - Discrete 2V Radial

Download 333-2UYD/S530-A3-L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
333-2UYD/S530-A3-L - Everlight - PCB symbol
click to zoom
PCB Footprints

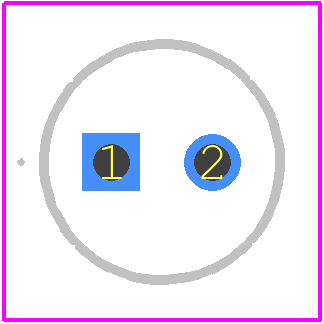

333-2UYD/S530-A3-L - Everlight PCB footprint - Other - Other - 333-2UYD/S530-A3-L-3
click to zoom
3D Models
333-2UYD/S530-A3-L - Everlight - 3D model - Other - 333-2UYD/S530-A3-L-3
click to zoom

333-2UYD/S530-A3-L Details

  • Manufacturer Part Number:

    333-2UYD/S530-A3-L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    2

  • Additional Feature:

    TR

  • Color:

    BRILLIANT YELLOW

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.4 V

  • Lens Type:

    DIFFUSED YELLOW

  • Luminous Intensity-Min:

    0.16 cd

  • Luminous Intensity-Nom:

    320.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    8.6 mm

  • Packing Method:

    BAG

  • Peak Wavelength:

    591 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    ROUND

  • Size:

    5 mm

  • Surface Mount:

    NO

  • T-code:

    T-1 3/4

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    35 deg
