- Part Number 33504510
- Manufacturer Aptiv
- Pin Count 64
- Part Category Connector
- Package Category Other
- Footprint Name Other - 33504510
- Released Date Jan 23, 2026
- Last Modified Date Jan 23, 2026 11:19 AM UTC
- Pinout / Pin List Click Here (Member Only)
33504510 Details
-
Manufacturer Part Number:
33504510
-
Part Life Cycle Code:
Contact Manufacturer
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Aptiv PLC
-
Connector Type:
COMBINATION LINE CONNECTOR
33504510 Frequently Asked Questions (FAQs)
-
The recommended torque specification for the 33504510 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 1.5-2.5 Nm (13.3-22.1 in-lbs) for the nut locks.
-
Yes, the 33504510 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G acceleration.
-
Yes, the 33504510 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and a humidity range of 5-95% RH.
-
The 33504510 connector has a mating cycle life of 500-1000 cycles, depending on the specific application and usage.
-
Yes, the 33504510 connectors are designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly systems.
Trust Checks
Expert Contribution
System Verified
Community Approved
33504510 Overview

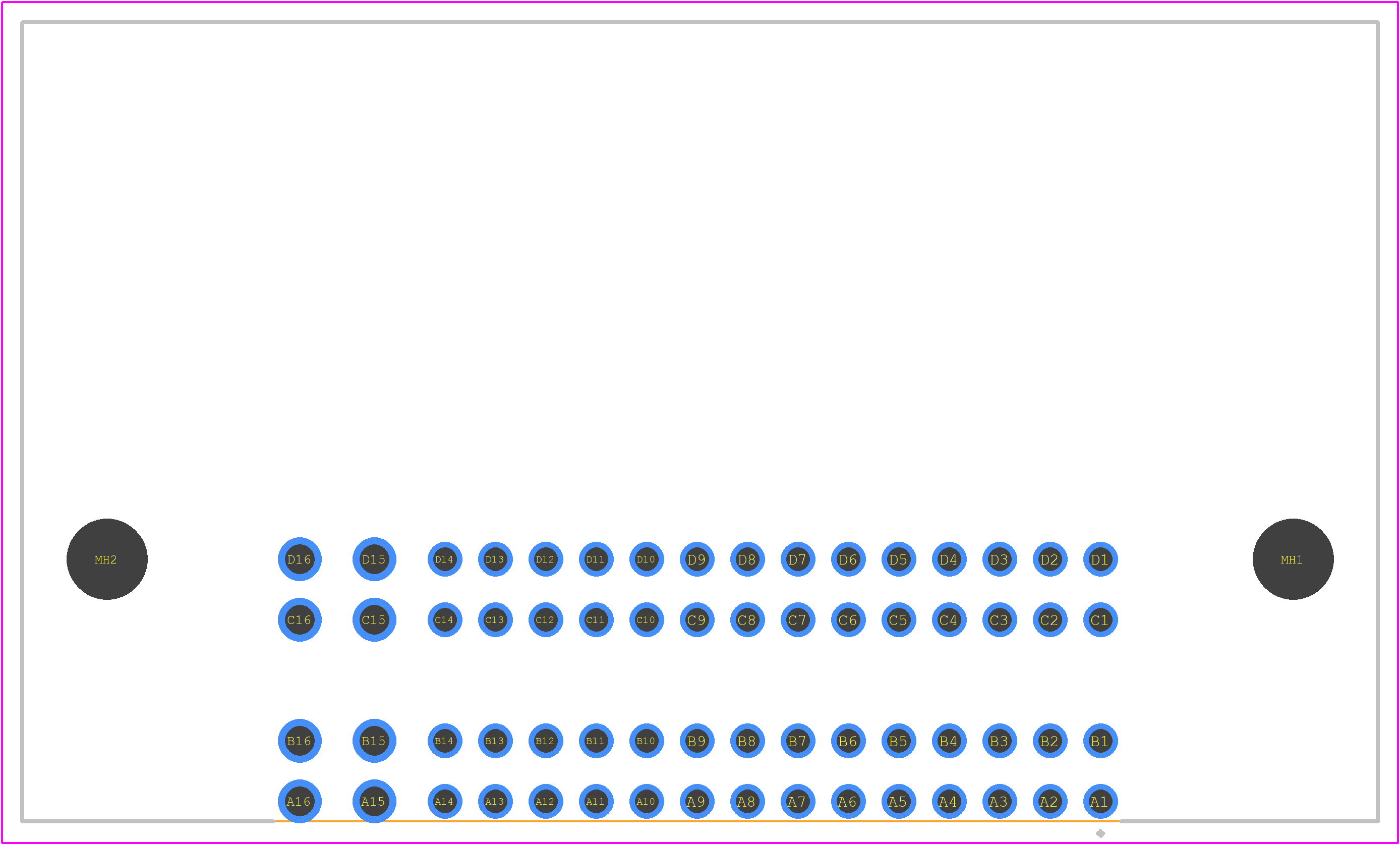

Use the download button to access the 33504510 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 33504,
or try a keyword search, such as Combination Line Connectors
