3382G-1-503G - Bourns

3382G-1-503G Frequently Asked Questions (FAQs)

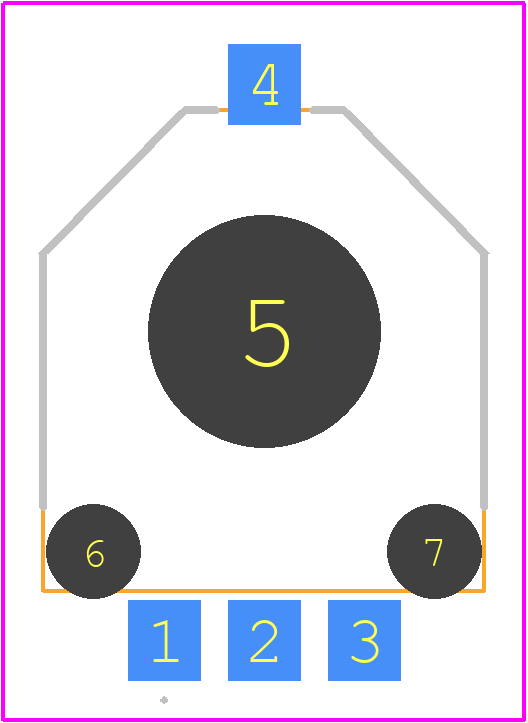

• What is the recommended PCB layout for optimal performance?
  Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 0.5 mm clearance around the component is recommended.
• How do I handle the component during assembly to prevent damage?
  Handle the component by the body, avoiding touching the pins or the glass seal. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Avoid bending or flexing the leads during assembly.
• What is the maximum operating temperature range for this component?
  The 3382G-1-503G is rated for operation from -40°C to +125°C. However, the component's performance may degrade above 100°C, and prolonged exposure above 125°C can cause permanent damage.
• Can I use this component in a high-vibration environment?
  The 3382G-1-503G is designed to withstand moderate vibration levels. However, extreme vibration can cause the component to fail. If your application involves high vibration, consider using a vibration-resistant variant or additional mechanical support.
• How do I clean the component and the PCB after assembly?
  Use a soft-bristled brush and a mild detergent to clean the component and PCB. Avoid using harsh chemicals, abrasive materials, or ultrasonic cleaning, as they can damage the component or the PCB.
