3382G-2-104G Frequently Asked Questions (FAQs)

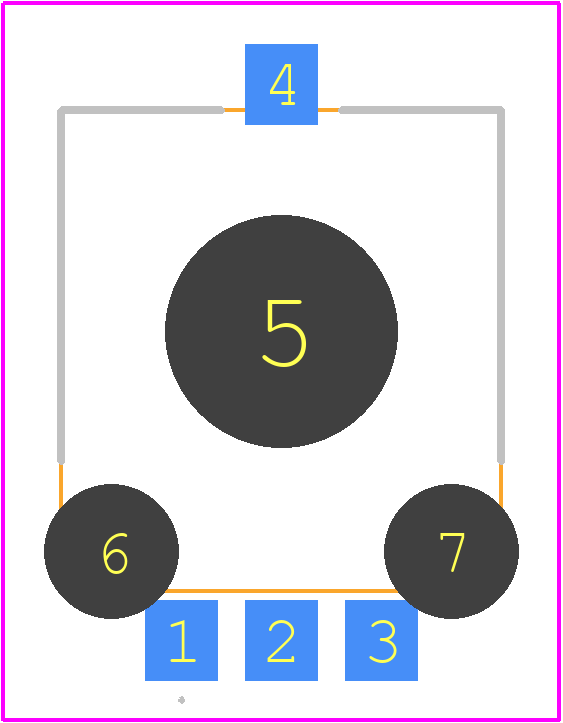

• What is the recommended PCB layout and land pattern for the 3382G-2-104G?
  Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow this layout to ensure proper thermal management and to minimize electromagnetic interference (EMI).
• How do I handle the thermal management of the 3382G-2-104G?
  The 3382G-2-104G has a high power rating, and proper thermal management is crucial. Ensure good airflow around the component, and consider using a heat sink or thermal pad to dissipate heat. The datasheet provides thermal resistance values to help with thermal design.
• What is the maximum operating temperature range for the 3382G-2-104G?
  While the datasheet specifies an operating temperature range of -40°C to +125°C, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. It's recommended to operate the component within a temperature range of -20°C to +100°C for optimal performance.
• Can I use the 3382G-2-104G in a high-vibration environment?
  The 3382G-2-104G is designed to meet the vibration requirements of various industries, including automotive and industrial. However, it's essential to ensure that the component is properly mounted and secured to the PCB to prevent damage or malfunction due to vibration.
• What is the recommended soldering profile for the 3382G-2-104G?
  Bourns recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. It's essential to follow a controlled soldering process to prevent damage to the component.
