33TS3004S-88B - CONEC

Description: Modular Connectors / Ethernet Connectors RJ45 8P8C LO PROFILE SHEILDED JACK

Download 33TS3004S-88B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
33TS3004S-88B - CONEC - PCB symbol
click to zoom
PCB Footprints

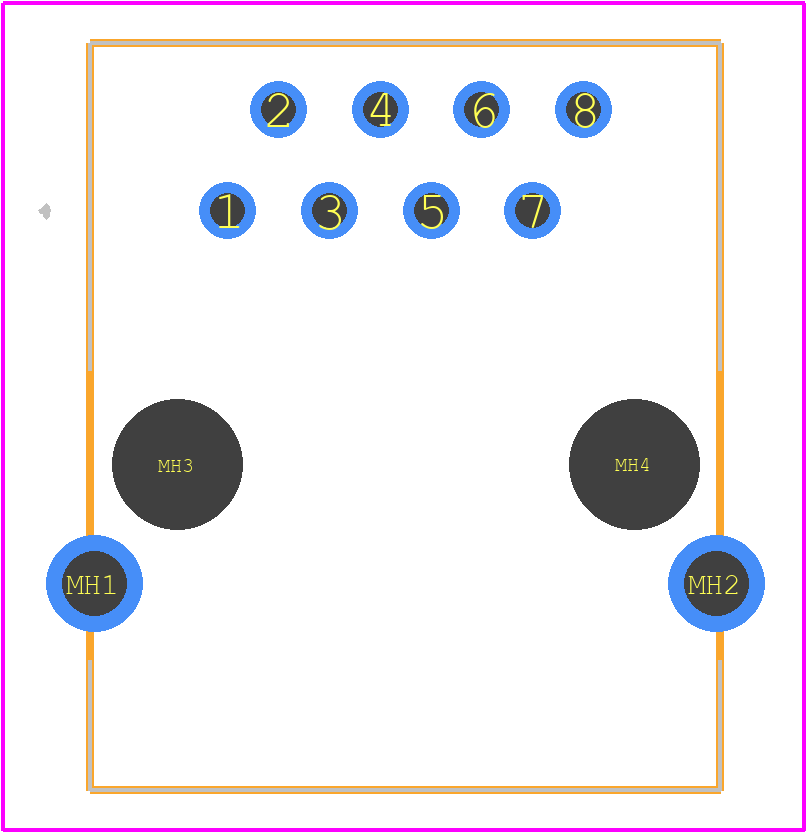

33TS3004S-88B - CONEC PCB footprint - Other - Other - 33TS3004S-88B-1
click to zoom
3D Models
33TS3004S-88B - CONEC - 3D model - Other - 33TS3004S-88B-1
click to zoom

33TS3004S-88B Details

  • Manufacturer Part Number:

    33TS3004S-88B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Conec Corporation

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.463 inch

  • Body Depth:

    0.734 inch

  • Body Length:

    0.619 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    TELCOM, MODULAR

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    6u inch

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

33TS3004S-88B Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the manufacturer's application notes.
  • Yes, the 33TS3004S-88B is designed to withstand vibrations up to 10g (IEC 61373 Cat. 2) and is suitable for use in high-vibration environments.
  • The 33TS3004S-88B has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for outdoor use. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • The 33TS3004S-88B has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's essential to ensure that the wire gauge meets the connector's mechanical and electrical requirements to avoid compromising the connection's reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

33TS3004S-88B Overview

Use the download button to access the 33TS3004S-88B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 33TS3, or try a keyword search, such as Telecom and Datacom Connectors
