3403.0172.24 - SCHURTER

Description: UMT 250 Fuse T 4A L 250V AC

Download 3403.0172.24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3403.0172.24 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

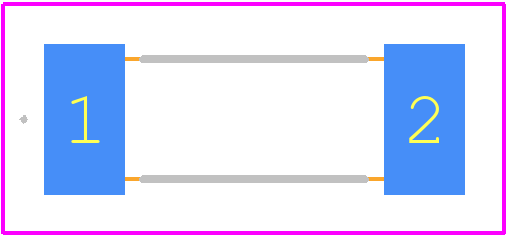

3403.0172.24 - SCHURTER PCB footprint - Other - Other - 10.10mm x 3.00mm x 3.00mm_2024
click to zoom
3D Models
3403.0172.24 - SCHURTER - 3D model - Other - 10.10mm x 3.00mm x 3.00mm_2024
click to zoom

3403.0172.24 Details

  • Manufacturer Part Number:

    3403.0172.24

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.10.00.40

  • Factory Lead Time:

    13 Weeks, 6 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    RATED BREAKING CAPACITY AT 125 VDC: 100 A

  • Blow Characteristic:

    TIME LAG

  • Body Breadth:

    3 mm

  • Body Height:

    3 mm

  • Body Length or Diameter:

    10.1 mm

  • Circuit Protection Type:

    ELECTRIC FUSE

  • JESD-609 Code:

    e2

  • Joule Integral-Nom:

    26 J

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, 13 INCH

  • Pre-arcing Time-Min:

    10 ms

  • Rated Breaking Capacity:

    200 A

  • Rated Current:

    4 A

  • Rated Voltage(AC):

    250 V

  • Rated Voltage(DC):

    125 V

  • Reference Standard:

    AEC-Q200; CE; CQC; CSA; CUL; IEC; KC; PSE; UKCA; UL; VDE

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL TIN

  • Terminal Shape:

    WRAPAROUND
