341-020-520-202 footprint, schematic symbol and 3D model by EDAC

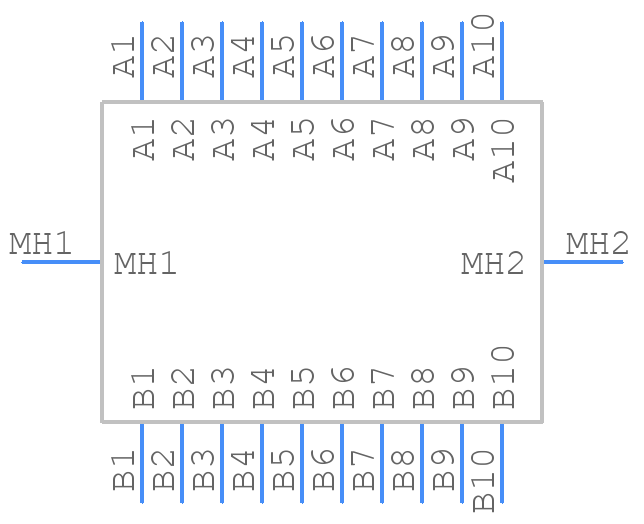

Symbol

click to zoom

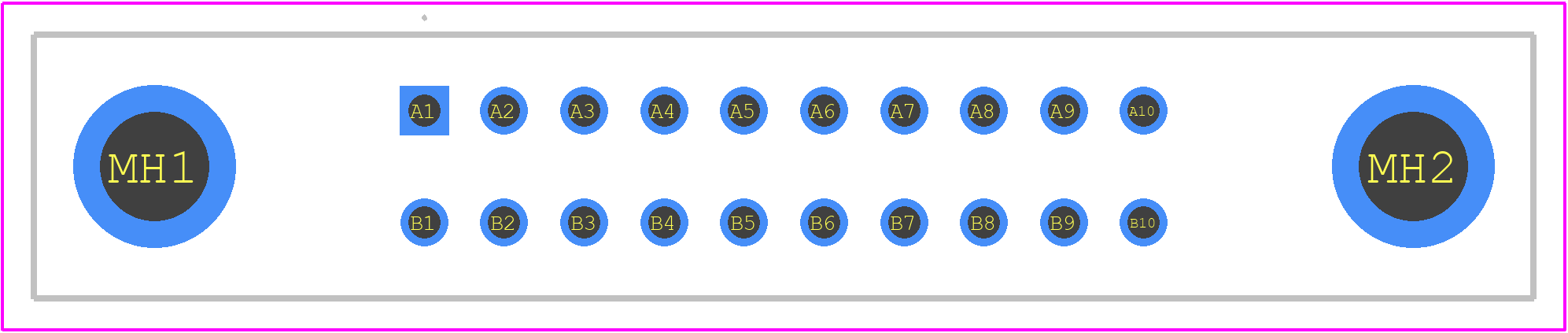

PCB Footprints

341-020-520-202 - EDAC PCB footprint - Other - Other - 341-020-520-202-2

click to zoom

3D Models

341-020-520-202 - EDAC - 3D model - Other - 341-020-520-202-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 341-020-520-202
Part Number 341-020-520-202
Manufacturer EDAC
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - 341-020-520-202-2
Released Date May 23, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

341-020-520-202 Details

Manufacturer Part Number:
341-020-520-202
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
EDAC Inc
YTEOL:
7
Body Breadth:
0.33 inch
Body Depth:
0.437 inch
Body Length:
1.875 inch
Connector Type:
CARD EDGE CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
10 mΩ
Contact Style:
BELLOWED TYPE
Dielectric Withstanding Voltage:
1697VAC V
Filter Feature:
NO
Insertion Force-Max:
4.45 N
Insulation Resistance:
5000000000 Ω
Insulator Color:
GREEN
Insulator Material:
POLYETHYLENE/POLYESTER
Mating Contact Pitch:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
HOLE 0.128
Mounting Option 2:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.56 mm
Rated Current (Signal):
3 A
Reference Standard:
UL
Terminal Length:
0.125 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
20
UL Flammability Code:
94V-0
Withdrawl Force-Min:
0.28 N

341-020-520-202 Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure proper mating and prevent damage to the connector.
Yes, the 341-020-520-202 connector is designed to withstand high-vibration environments. However, it's crucial to follow the recommended mounting and screw torque guidelines to ensure the connector remains secure and functional.
The 341-020-520-202 connector is designed to operate in a temperature range of -40°C to 105°C (-40°F to 221°F) and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and EDAC Inc's environmental specifications for detailed information.
The recommended cable size for the 341-020-520-202 connector is 24-20 AWG (0.25-0.5 mm²). It's recommended to use a cable with a suitable insulation material and jacket type that meets the application's requirements.
The 341-020-520-202 connector is designed for signal integrity and can support high-speed data transmission applications up to 3.0 Gbps. However, it's essential to consult the datasheet and EDAC Inc's signal integrity specifications for detailed information.

Trust Checks

Community Provided

System Verified

Community Approved

341-020-520-202 Overview

Use the download button to access the 341-020-520-202 schematic symbol, PCB footprint, and 3D model.
