3426-0000T - 3M

3426-0000T Details

• Manufacturer Part Number:

  3426-0000T

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  3M Interconnect

• YTEOL:

  0

• Additional Feature:

  LOW PROFILE

• Body Breadth:

  0.402 inch

• Body Depth:

  0.22 inch

• Body Length:

  2.701 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  TIN LEAD (200) OVER NICKEL (100)

• Contact Finish Termination:

  Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  STAGGERED

• Contact Style:

  IDC

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1000VAC V

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  GRAY

• Insulator Material:

  GLASS FILLED POLYESTER

• JESD-609 Code:

  e0

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.2 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  120 °C

• Operating Temperature-Min:

  -55 °C

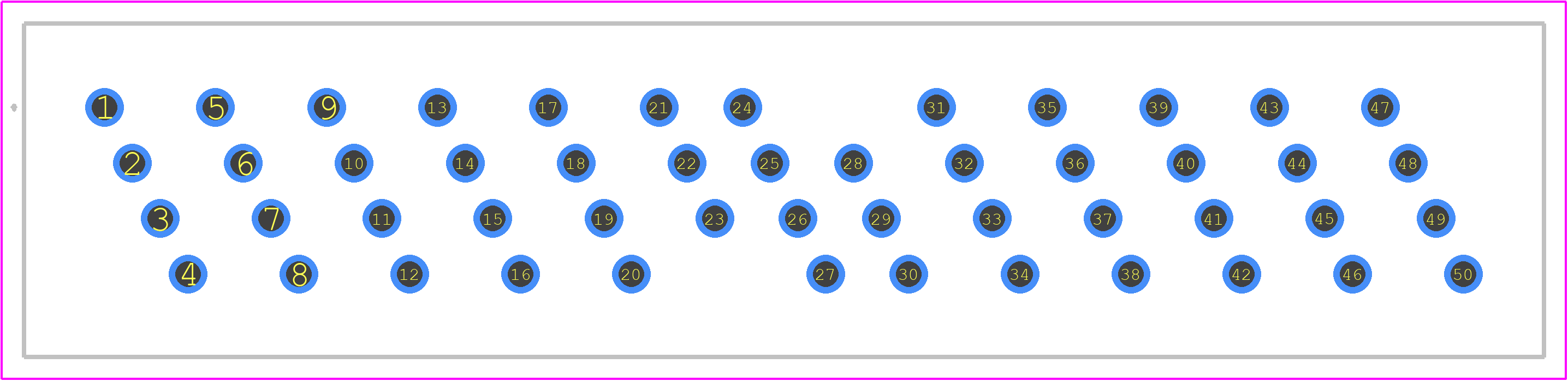

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  200u inch

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Length:

  0.097 inch

• Terminal Pitch:

  5.08 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  50

• UL Flammability Code:

  94V-0
