344103-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Horizontal | Number of Rows 3 | Number of Sections 1 | Contact Features: Mating Tab Thickness .64 MM | Contact Size 1.8mm | Mating Tab Width .071 INCH | Contact Type Tab | Mating Tab Width 1.8 MM | Contact Mating Area Plating Material Gold | Mating Tab Thickness .025 INCH | Dimensions: Profile Height from PCB .118 INCH | Connector Length 52.71 MM | Connector Width 1.602 INCH | Connector Width 40.7 MM | Profile Height

Download 344103-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
344103-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

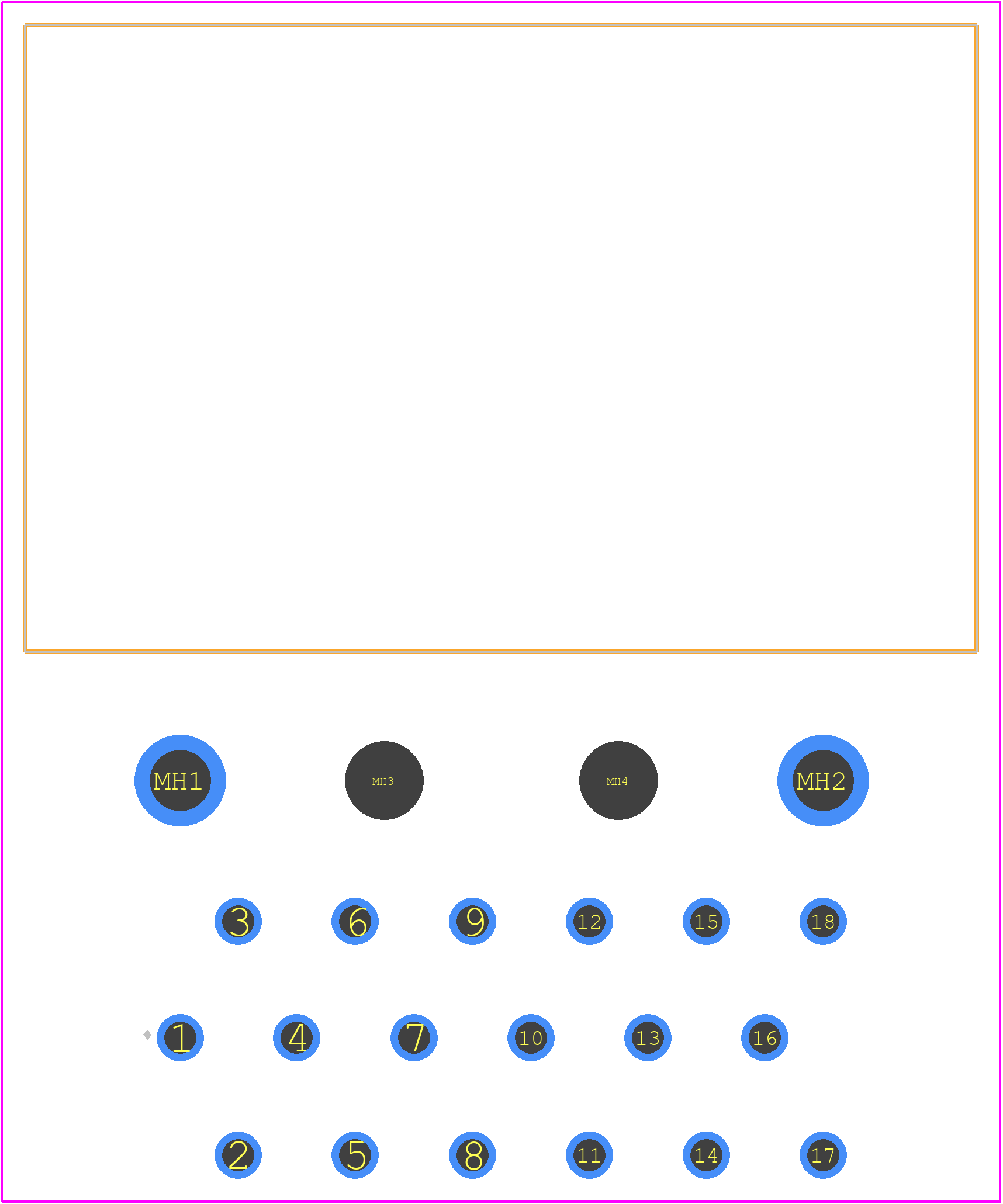

344103-1 - TE Connectivity PCB footprint - Other - Other - 344103-1-4
click to zoom
3D Models
344103-1 - TE Connectivity - 3D model - Other - 344103-1-4
click to zoom

344103-1 Details

  • Manufacturer Part Number:

    344103-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    41 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    ECONOSEAL III SERIES

  • Body Breadth:

    1.602 inch

  • Body Length:

    2.07 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Pitch:

    5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    18

344103-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals to ensure reliable connections.
  • Yes, the 344103-1 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure reliability.
  • The 344103-1 connector has a IP67 rating, making it suitable for outdoor and harsh environmental conditions. However, it's crucial to follow proper sealing and installation procedures to maintain the IP rating.
  • The 344103-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and potential thermal stresses.
  • Yes, the 344103-1 connector is designed to be compatible with other TE Connectivity products and can be used with third-party components. However, it's essential to verify compatibility and follow proper installation procedures to ensure reliable connections.
