346-050-520-802 - EDAC

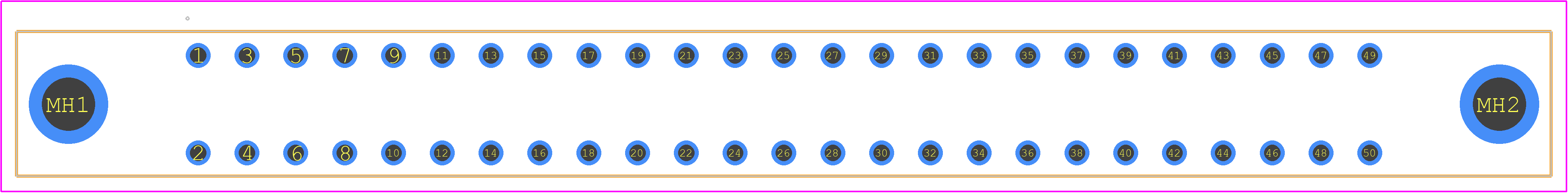

346-050-520-802 Details

• Manufacturer Part Number:

  346-050-520-802

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  EDAC Inc

• YTEOL:

  7

• Board Mounting Option:

  HOLE 0.136

• Body Breadth:

  0.37 inch

• Body Depth:

  0.6 inch

• Body Length:

  3.935 inch

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Mating:

  GOLD OVER NICKEL

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  2100VAC V

• Filter Feature:

  NO

• Insertion Force-Max:

  4.45 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  GREEN

• Insulator Material:

  POLYETHYLENE POLYESTER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.125 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE 0.128

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  6.35 mm

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Terminal Length:

  0.175 inch

• Terminal Pitch:

  3.18 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  50

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.28 N
