34690-0201 - Molex

Description: Automotive Connectors STAC64 VERT HDR 20 C 0 CKT GRY POL B TRAY

Download 34690-0201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
34690-0201 - Molex - PCB symbol
click to zoom
PCB Footprints

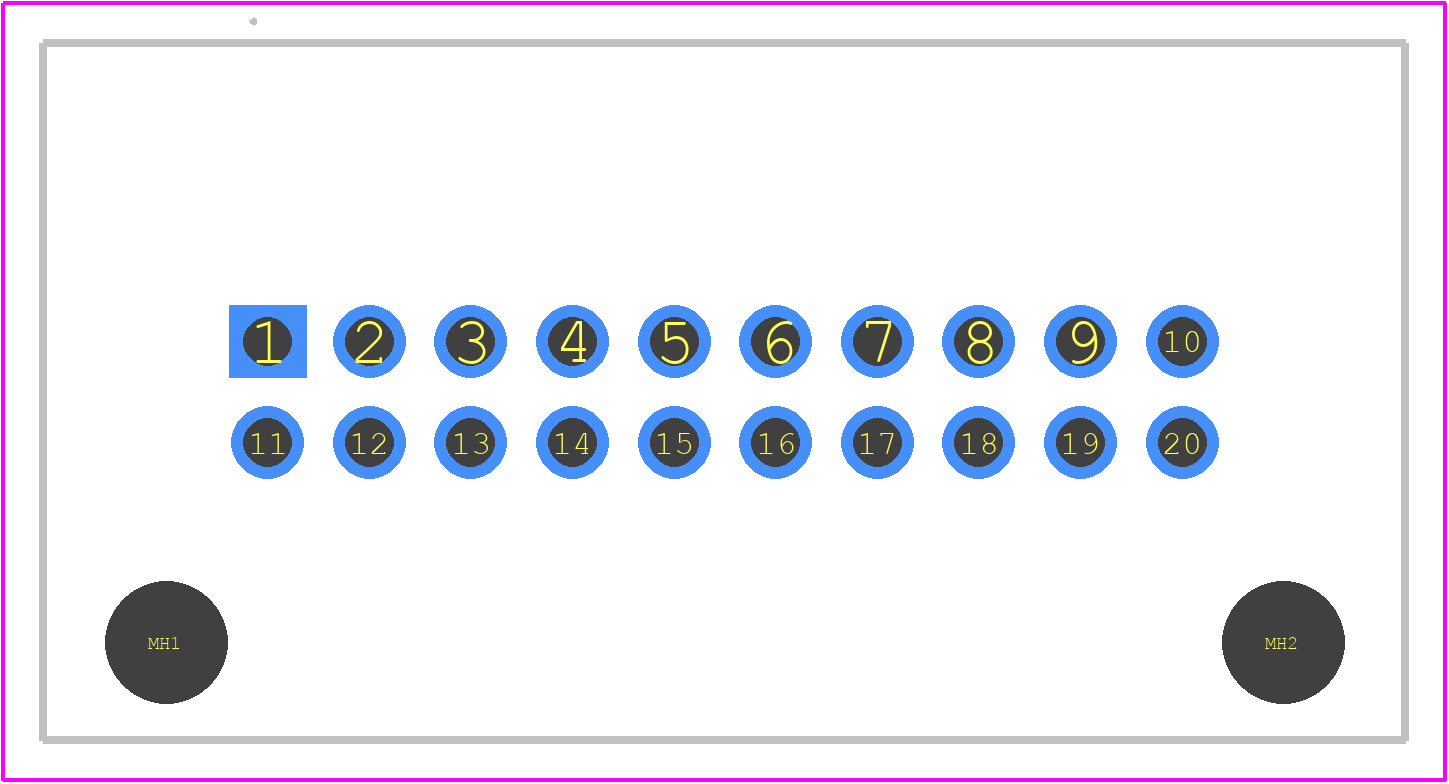

34690-0201 - Molex PCB footprint - Other - Other - 34690-0201-2
click to zoom
3D Models
34690-0201 - Molex - 3D model - Other - 34690-0201-2
click to zoom

34690-0201 Details

  • Manufacturer Part Number:

    34690-0201

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.74

  • Body Breadth:

    0.868 inch

  • Body Depth:

    1.104 inch

  • Body Length:

    1.34 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - reflowed over Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Style:

    HYBRID

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED SYNDIOTACTIC POLYSTYRENE

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    10 A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

34690-0201 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow the recommended torque to ensure secure mating and prevent damage to the connector.
  • Yes, the 34690-0201 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to ensure proper mounting and secure screw locking to prevent connector damage or disconnection.
  • The 34690-0201 connector is part of the Molex Mini-Fit family of connectors, which are designed to be compatible with each other. However, it's essential to verify compatibility with specific connectors and applications to ensure proper mating and performance.
  • The operating temperature range for the 34690-0201 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • The 34690-0201 connector is designed to operate in a variety of environments, including those with high humidity. However, exposure to harsh chemicals may affect the connector's performance and reliability. It's essential to evaluate the connector's performance in specific environments and consider additional protection or coatings if necessary.
