34691-0162 footprint, schematic symbol and 3D model by Molex

Symbol

click to zoom

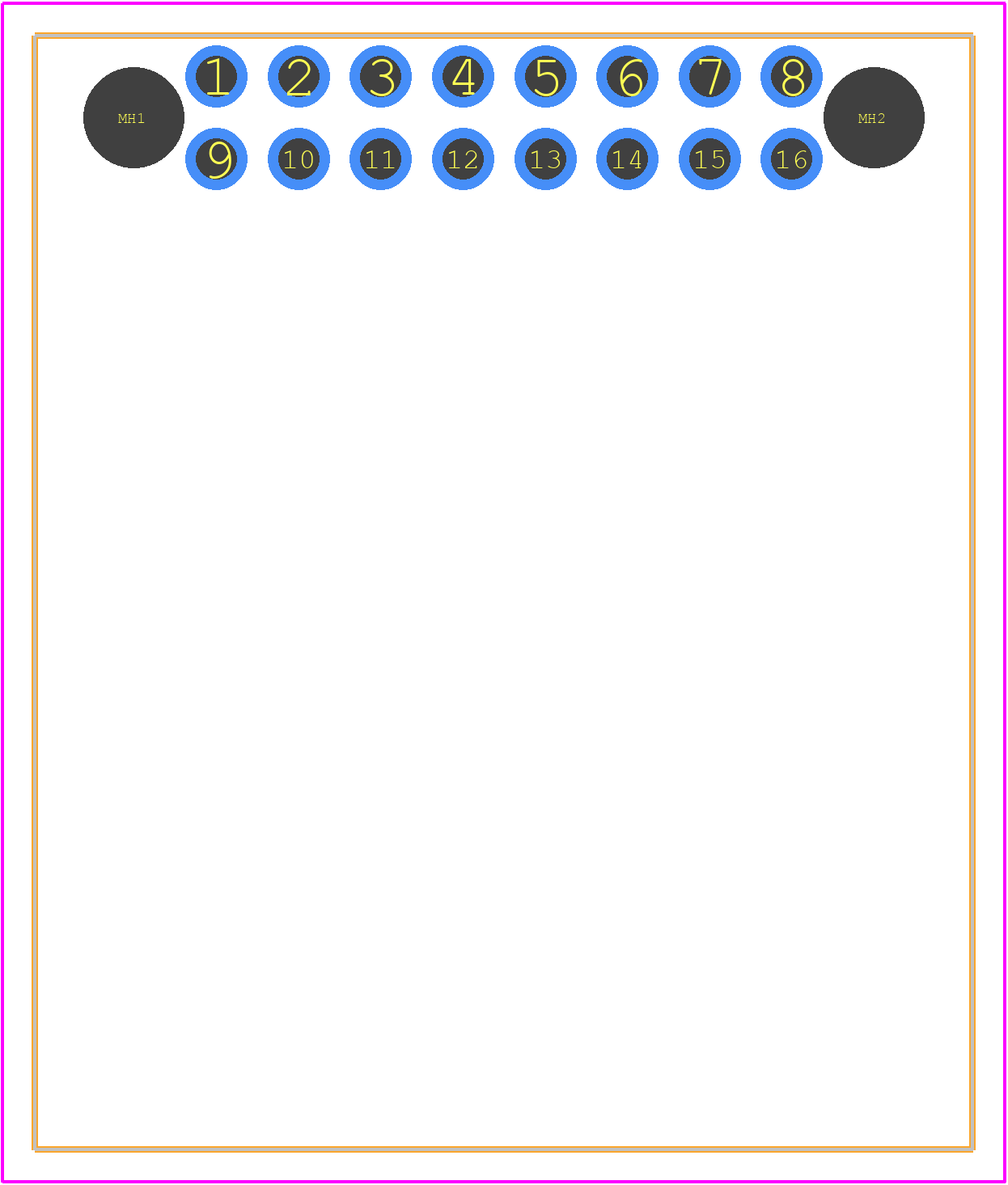

PCB Footprints

34691-0162 - Molex PCB footprint - Other - Other - 34691-0162-3

click to zoom

3D Models

34691-0162 - Molex - 3D model - Other - 34691-0162-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 34691-0162
Part Number 34691-0162
Manufacturer Molex
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - 34691-0162-3
Released Date Jan 7, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

34691-0162 Details

Manufacturer Part Number:
34691-0162
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
18 Weeks
Manufacturer:
Molex
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER):10A
Body Breadth:
0.868 inch
Body Depth:
1.385 inch
Body Length:
1.14 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Matte Tin (Sn) - reflowed over Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
BRASS
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
POLYETHYLENE
JESD-609 Code:
e3
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
16

34691-0162 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
Yes, the 34691-0162 connector is designed to withstand high-vibration environments, but it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
The 34691-0162 connector has a IP67 rating, making it suitable for outdoor use and harsh environmental conditions, but it's essential to follow proper sealing and installation procedures to maintain the IP rating.
The 34691-0162 connector is designed to accommodate wire sizes up to 16 AWG (1.5 mm²). Using larger wire sizes may compromise the connector's performance and reliability.
Yes, the 34691-0162 connector is part of Molex's modular connector system, allowing it to be used with other Molex products and systems, such as cable assemblies, PCB connectors, and adapters.

Trust Checks

Expert Contribution

System Verified

Community Approved

34691-0162 Overview

Use the download button to access the 34691-0162 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 34691, or try a keyword search, such as Combination Line Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
