The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
Yes, the contacts are gold-plated to ensure reliable connections and prevent corrosion.
The operating temperature range for the 34691-6081 connector is -40°C to 105°C (-40°F to 221°F).
Yes, the 34691-6081 connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
The 34691-6081 connector is suitable for both signal and power applications, with a current rating of up to 3A per contact.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
34691-6081 Overview

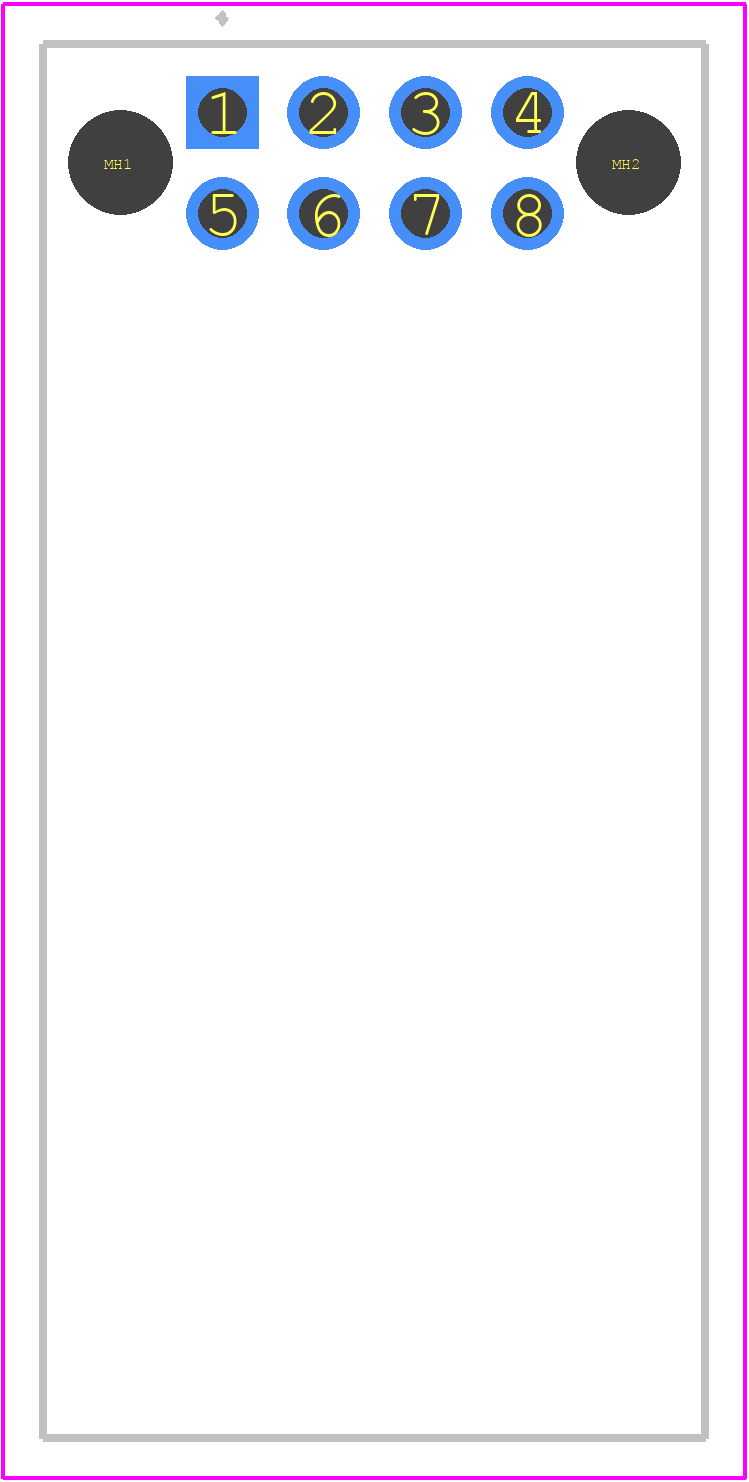

Use the download button to access the 34691-6081 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 34691,
or try a keyword search, such as Combination Line Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
