The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs) to ensure secure connections.
Yes, the 34691-6202 connector is designed to withstand vibrations up to 10G (10 times the force of gravity) and is suitable for use in high-vibration environments.
The operating temperature range for the 34691-6202 connector is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
Yes, the 34691-6202 connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
The recommended wire size for the 34691-6202 connector is 24-20 AWG (0.25-0.5 mm²) to ensure reliable connections and minimize wire damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
34691-6202 Overview

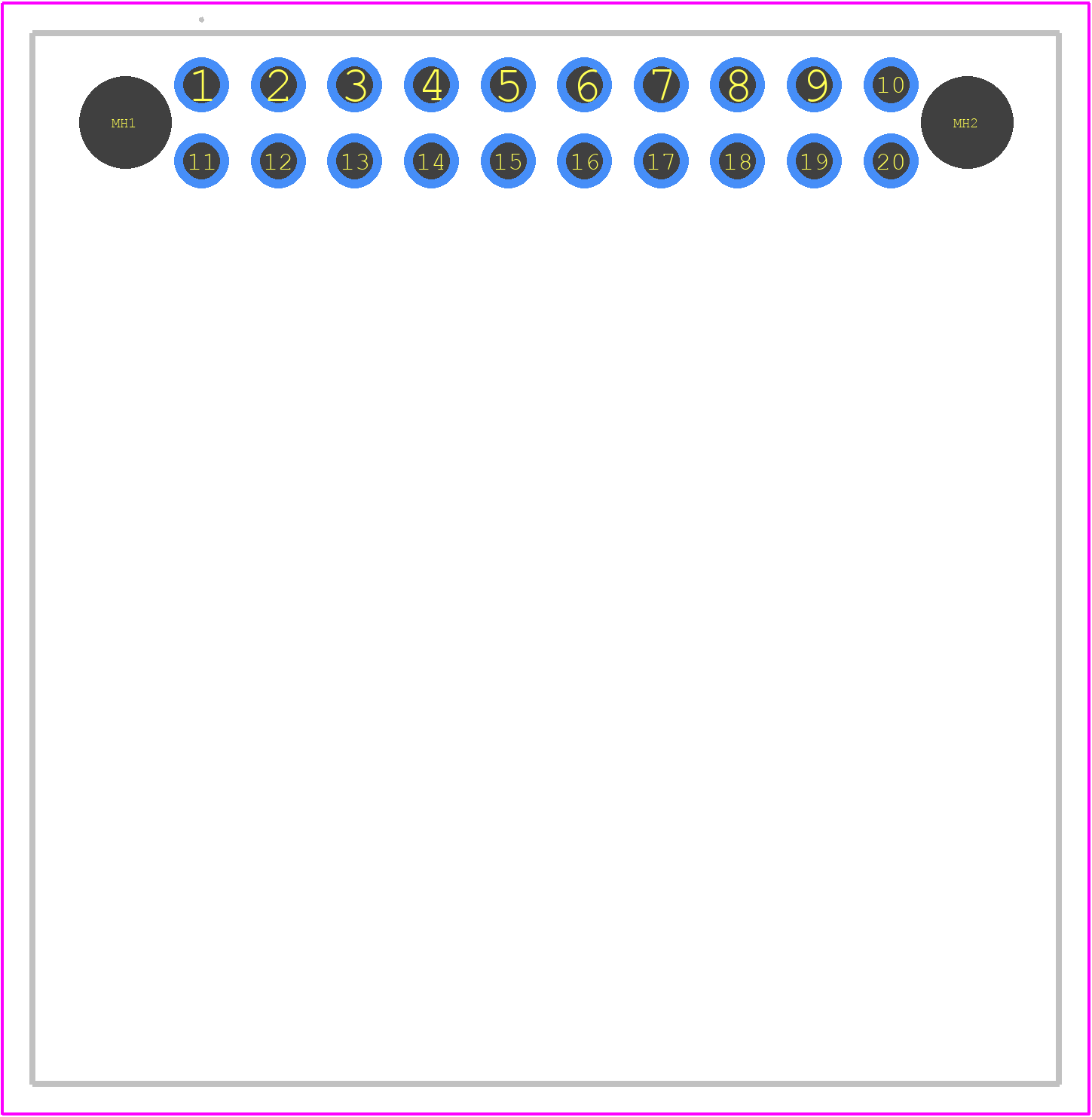

Use the download button to access the 34691-6202 schematic symbol, PCB footprint, and 3D model.
