The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
Yes, the 34696-0100 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
The operating temperature range for the 34696-0100 is -40°C to 105°C (-40°F to 221°F).
Yes, the 34696-0100 is designed for outdoor use and can withstand exposure to moisture and humidity.
No, the 34696-0100 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
34696-0100 Overview

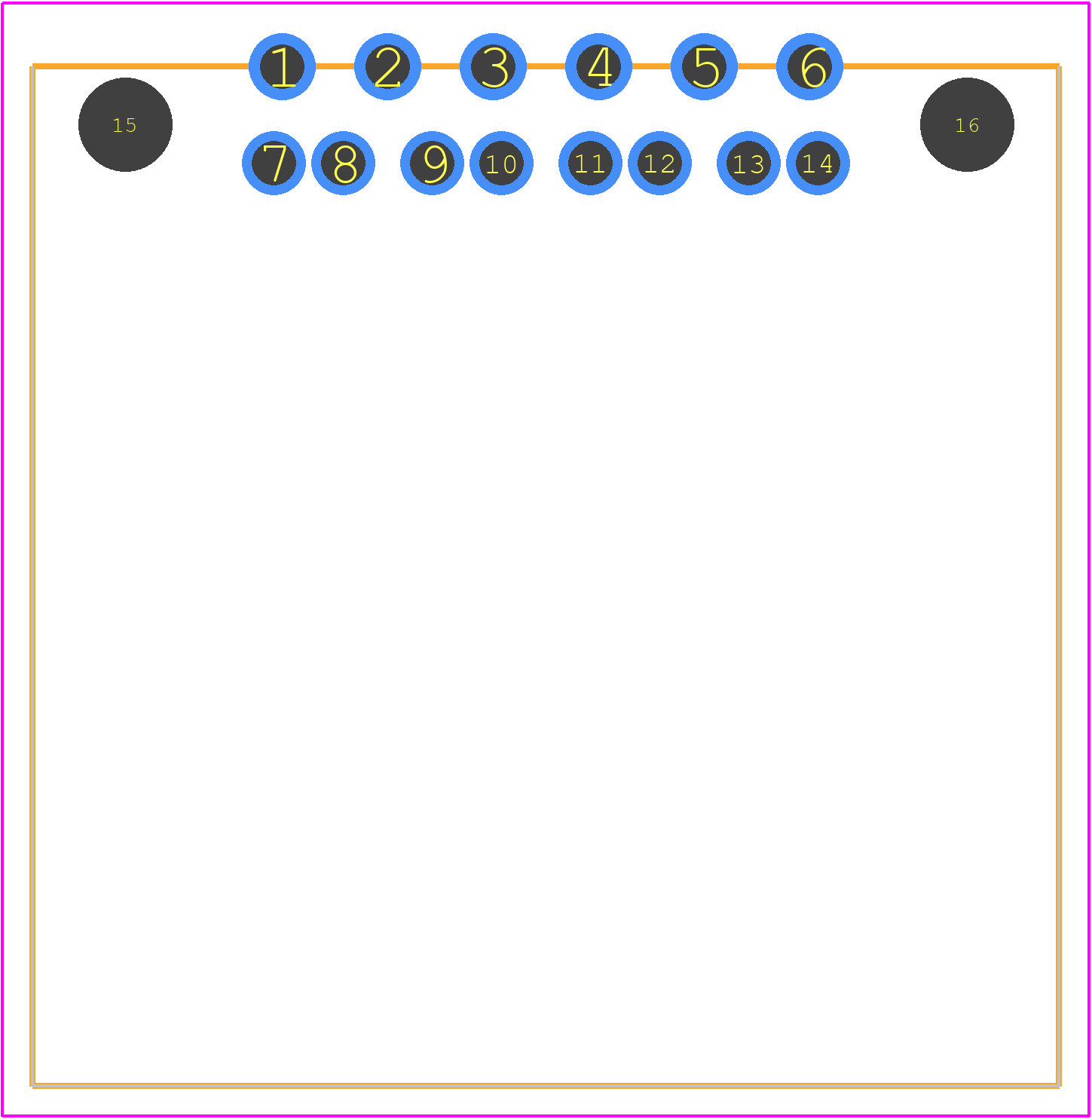

Use the download button to access the 34696-0100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 34696,
or try a keyword search, such as Combination Line Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
