3474-0005PR - 3M

Description: 3M 3400 Series 1.27mm Pitch IDC Connector, 10 Way, 4 Row

Download 3474-0005PR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3474-0005PR - 3M - PCB symbol
click to zoom
PCB Footprints

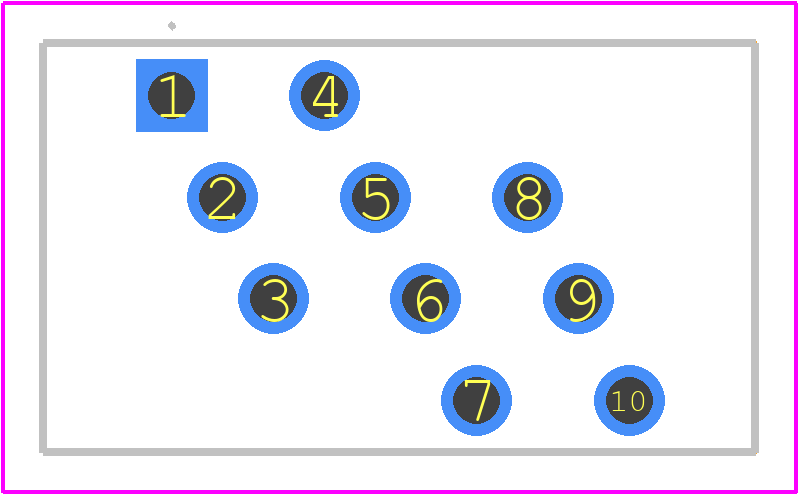

3474-0005PR - 3M PCB footprint - Other - Other - 3474-0005PR-4
click to zoom
3D Models
3474-0005PR - 3M - 3D model - Other - 3474-0005PR-4
click to zoom

3474-0005PR Details

  • Manufacturer Part Number:

    3474-0005PR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

3474-0005PR Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 N·m (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 3474-0005PR connector is designed to withstand vibrations. However, it's crucial to follow proper mounting and installation procedures to ensure the connector remains secure and functional in high-vibration environments.
  • The 3474-0005PR connector has a plastic body and is rated for indoor use. While it can withstand some environmental stress, it's not recommended for outdoor or harsh environmental use without proper protection, such as potting or conformal coating.
  • The 3474-0005PR connector is designed for use with wire sizes ranging from 24 AWG to 16 AWG. Using larger wire sizes may compromise the connector's performance and reliability.
  • Yes, the 3474-0005PR connector is compatible with shielded cables. However, it's essential to ensure proper shielding termination to maintain the integrity of the signal and prevent electromagnetic interference (EMI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3474-0005PR Overview

Use the download button to access the 3474-0005PR schematic symbol, PCB footprint, and 3D model.
