The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
Yes, the contacts are gold-plated to ensure reliable connections and prevent corrosion.
The operating temperature range for the 34897-6160 connector is -40°C to 105°C (-40°F to 221°F).
Yes, the 34897-6160 connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
The 34897-6160 connector is suitable for both signal and power applications, with a current rating of up to 3A per contact.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
34897-6160 Overview

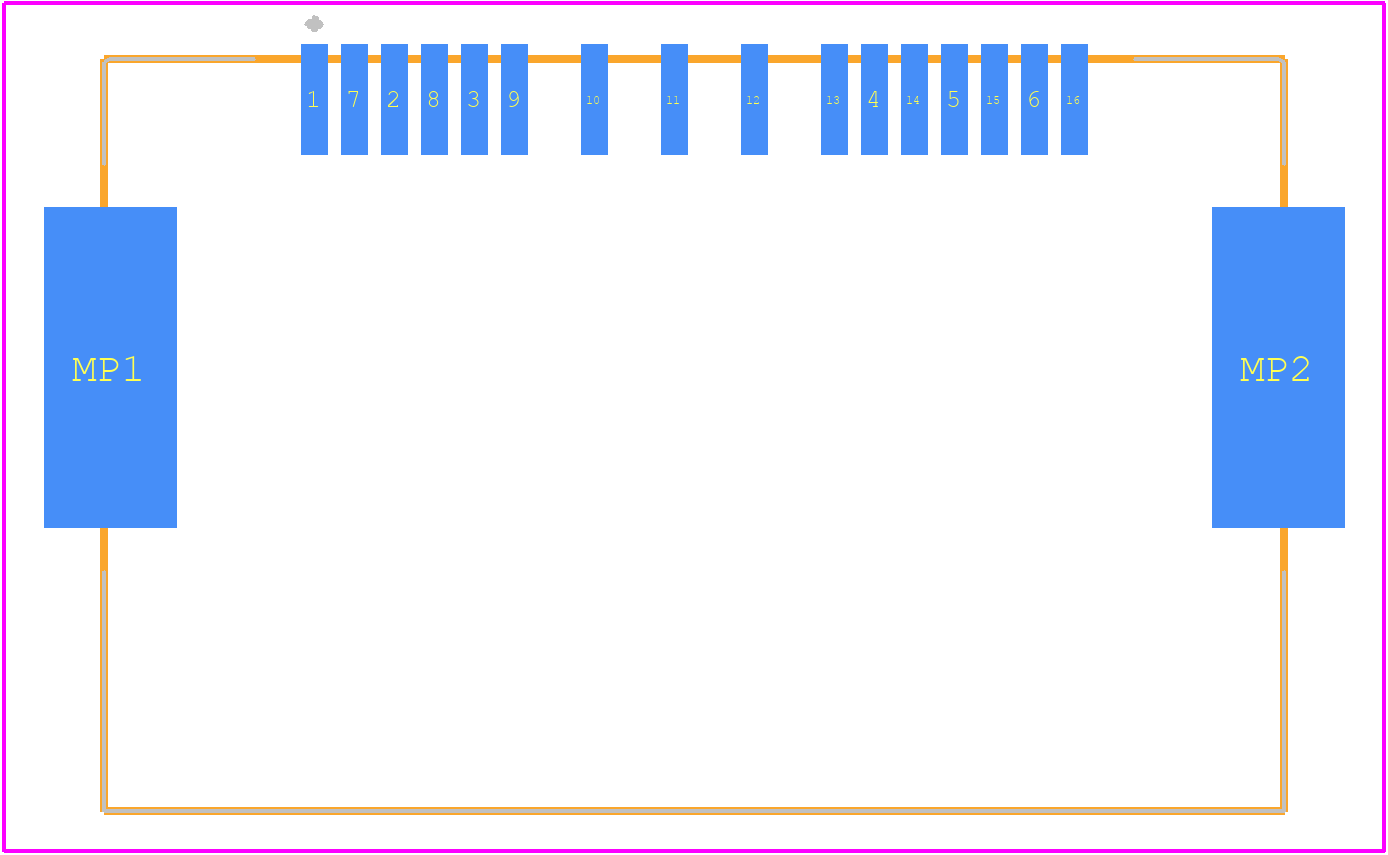

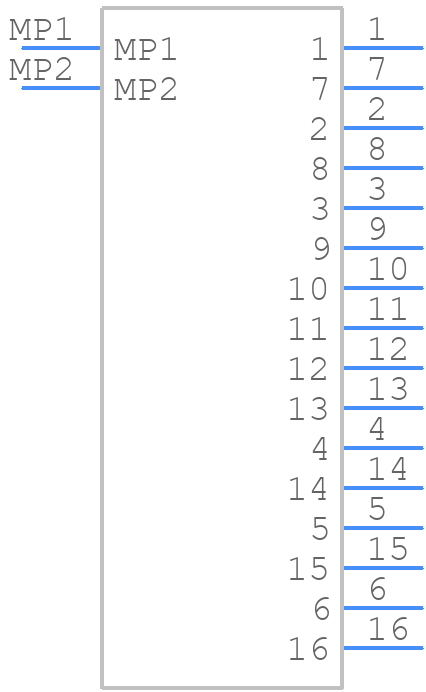

Use the download button to access the 34897-6160 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 34897,
or try a keyword search, such as Headers and Edge Type Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
