34897-6240 - Molex

Description: Automotive Connectors MINI50 RA HDR SMT 24CKT POL A BLK Au

Download 34897-6240 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

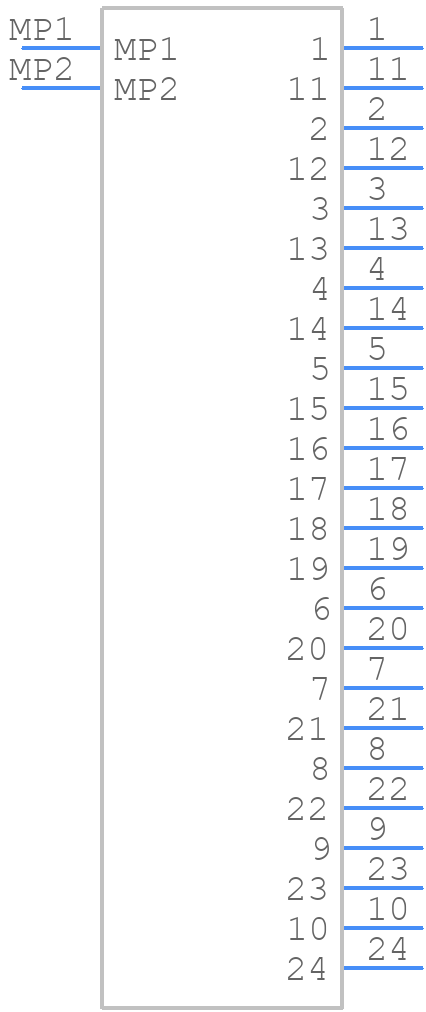

34897-6240 - Molex - PCB symbol
click to zoom
PCB Footprints

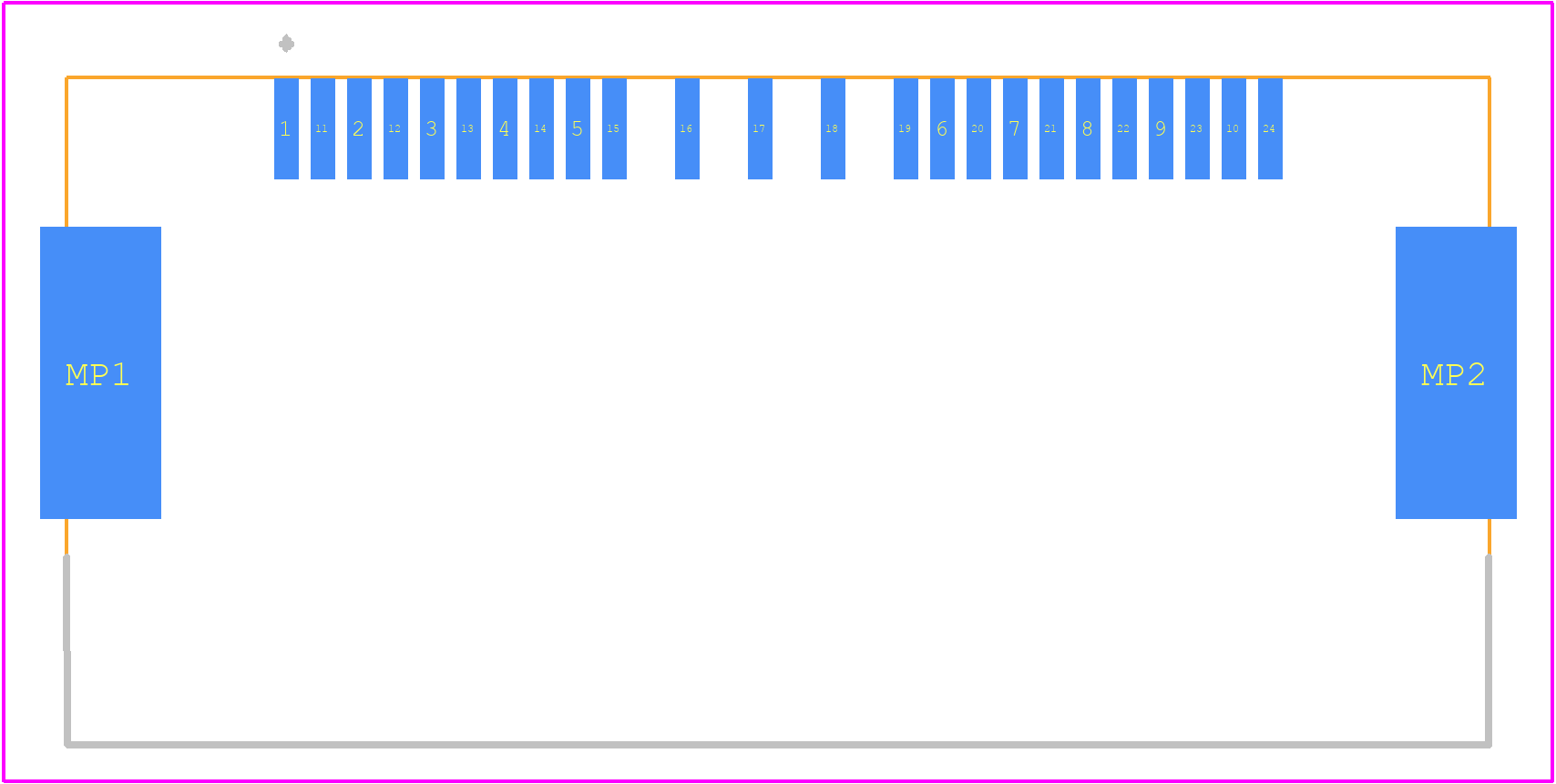

34897-6240 - Molex PCB footprint - Other - Other - 34897-6240-3
click to zoom
3D Models
34897-6240 - Molex - 3D model - Other - 34897-6240-3
click to zoom

34897-6240 Details

  • Manufacturer Part Number:

    34897-6240

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9

  • Additional Feature:

    POALRIZED

  • Body Breadth:

    0.476 inch

  • Body Depth:

    0.74 inch

  • Body Length:

    1.537 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED SYNDIOTACTIC POLYSTYRENE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94-HB

34897-6240 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs) to ensure secure connections.
  • Yes, the 34897-6240 connector is designed to withstand vibrations up to 10G (10 times the force of gravity) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 34897-6240 connector is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
  • Yes, the 34897-6240 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The typical lead time for delivery of the 34897-6240 connector is 6-8 weeks, but this may vary depending on the quantity and availability of the product.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

34897-6240 Overview

Use the download button to access the 34897-6240 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 34897, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
