The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
Yes, the 34958-8380 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
Yes, the 34958-8380 has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
The operating temperature range for the 34958-8380 is -40°C to 125°C (-40°F to 257°F).
Yes, the 34958-8380 can accommodate wire sizes from 18 AWG to 24 AWG, but the recommended wire size is 20 AWG.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
34958-8380 Overview

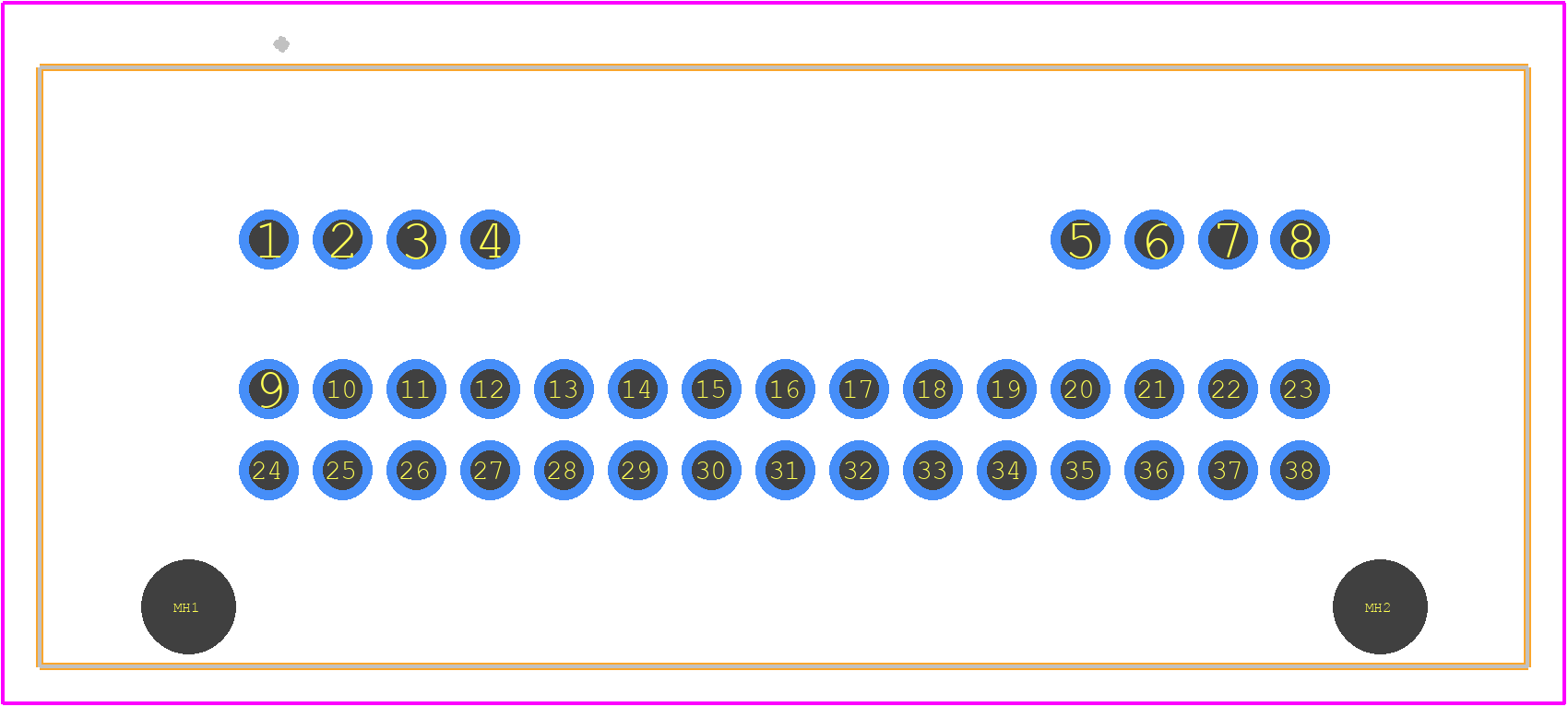

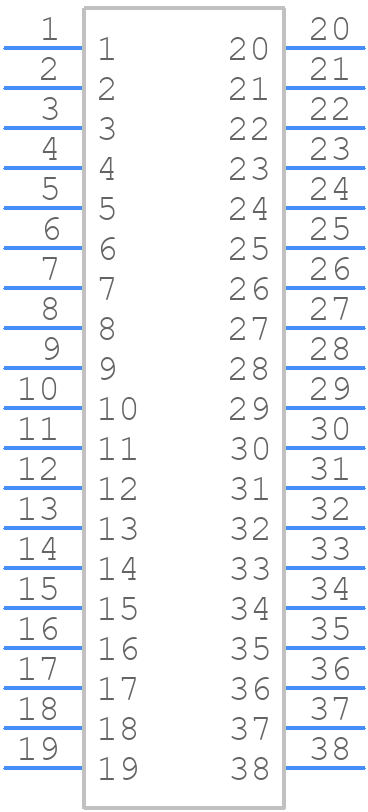

Use the download button to access the 34958-8380 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
To find more CAD model downloads similar to this part, try a partial part number search, like 34958,
or try a keyword search, such as Combination Line Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
