Part Image

350585-1 - TE Connectivity

Description: Mate-n-Lok header,plug,vertical,6way pin

Download 350585-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

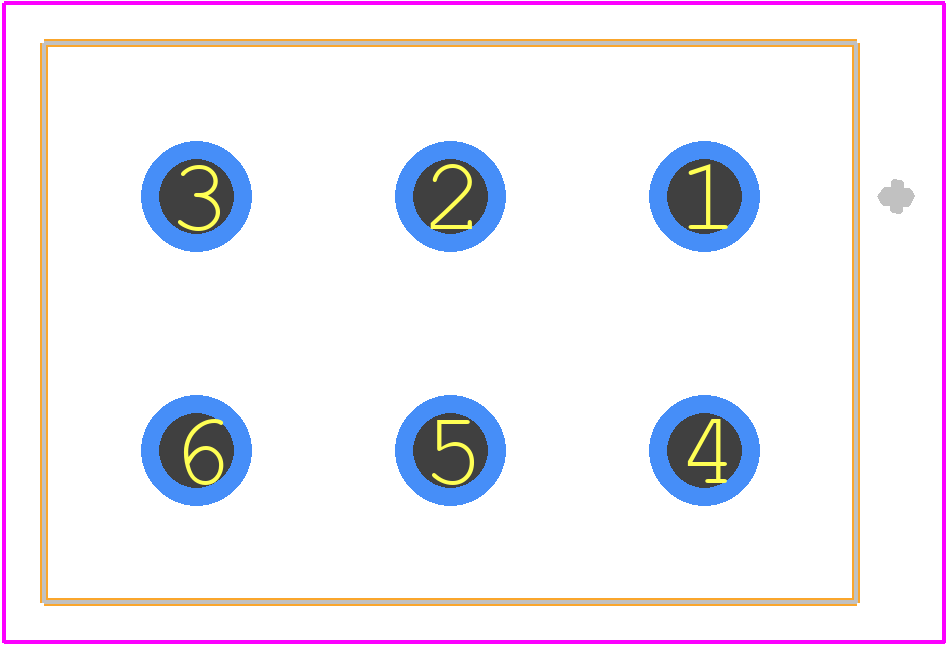

350585-1 - TE Connectivity PCB footprint - Other - Other - 350585-1-2
click to zoom
3D Models
350585-1 - TE Connectivity  - 3D model - Other - 350585-1-2
click to zoom

350585-1 Details

  • Manufacturer Part Number:

    350585-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.69

  • Additional Feature:

    MATE-N-LOK

  • Body Breadth:

    0.55 inch

  • Body Depth:

    0.58 inch

  • Body Length:

    0.8 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    POWER CONNECTOR

  • Contact Arrangement:

    S0P6

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    50 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Contact Row Spacing:

    0.25 inch

  • Mating Information:

    1-480704-0

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    200u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    12 A

  • Reference Standard:

    UL, VDE

  • Terminal Length:

    0.12 inch

  • Terminal Pitch:

    6.35 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-2

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

350585-1 Overview

Use the download button to access the 350585-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 35058, or try a keyword search, such as Power Connectors
