35211K8FT - TE Connectivity

Description: 1.8 kOhms ±1% 2W Chip Resistor 2512 (6332 Metric) Automotive AEC-Q200, Moisture Resistant Thick Film ,-55°C ~ 155°C

Download 35211K8FT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
35211K8FT - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

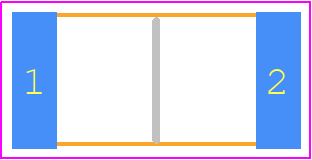

35211K8FT - TE Connectivity PCB footprint - Resistor Chip - Resistor Chip - 2512 (6332 Metric)_2026-1.22
click to zoom
3D Models
35211K8FT - TE Connectivity - 3D model - Resistor Chip - 2512 (6332 Metric)_2026-1.22
click to zoom

35211K8FT Details

  • Manufacturer Part Number:

    35211K8FT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    14 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Package Shape:

    RECTANGULAR PACKAGE

  • Packing Method:

    TR

  • Physical Dimension:

    6.35mm x 3.2mm x .55mm

  • Rated Power Dissipation (P):

    2 W

  • Resistance:

    1800 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    250 V

35211K8FT Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 35211K8FT is designed to withstand high-vibration environments, making it suitable for applications such as industrial machinery, transportation, and aerospace.
  • Yes, the 35211K8FT is designed to operate in temperatures ranging from -40°C to 125°C and can withstand high humidity environments, making it suitable for outdoor and industrial applications.
  • The 35211K8FT has a mating cycle life of 500 cycles, ensuring reliable connections over an extended period.
  • While the datasheet specifies 18 AWG wire, the connector can accommodate wire sizes ranging from 16 AWG to 20 AWG, but consult TE Connectivity's application notes for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

35211K8FT Overview

Use the download button to access the 35211K8FT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 35211, or try a keyword search, such as Metal Glaze/Thick Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
