353170620 - Molex

Description: 4.20mm Pitch Mini-Fit Header, Dual Row, Vertical, 6 Circuits, PA Polyamide (Nylon)

Download 353170620 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
353170620 - Molex - PCB symbol
click to zoom
PCB Footprints

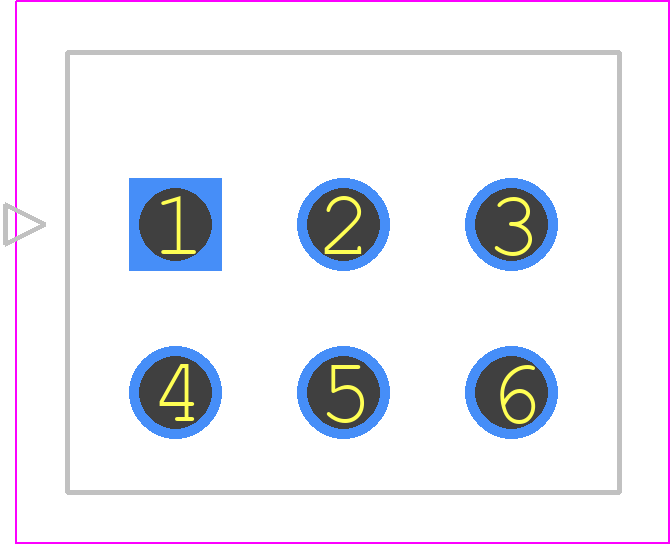

353170620 - Molex PCB footprint - Other - Other - 3531706Y0
click to zoom
3D Models
353170620 - Molex - 3D model - Other - 3531706Y0
click to zoom

353170620 Details

  • Manufacturer Part Number:

    353170620

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN COPPER

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e2

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-2

353170620 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the contacts are gold-plated to ensure reliable connections and prevent corrosion.
  • The operating temperature range for the Molex 353170620 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the Molex 353170620 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
  • Yes, the Molex 353170620 connector is suitable for signal transmission, including low-voltage and low-current applications.
