353171020 - Molex

Description: 4.20mm Pitch Mini-Fit Header, Dual Row, Vertical, 10 Circuits, PA Polyamide (Nylon)

Download 353171020 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
353171020 - Molex - PCB symbol
click to zoom

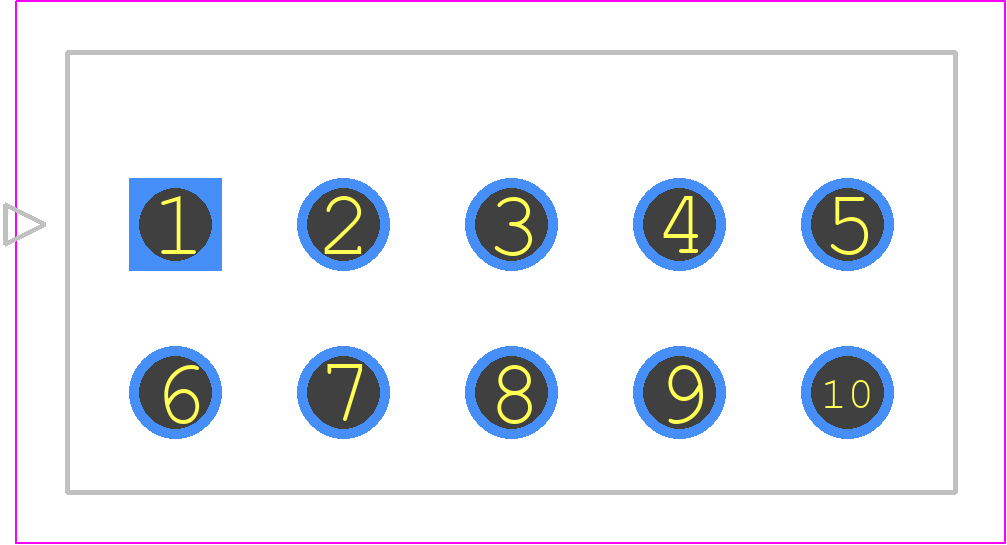

PCB Footprints
353171020 - Molex PCB footprint - Other - Other - 3531710Y0
click to zoom
3D Models
353171020 - Molex - 3D model - Other - 3531710Y0
click to zoom

353171020 Details

  • Manufacturer Part Number:

    353171020

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Copper (Sn/Cu)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e2

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-2

353171020 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the 353171020 connector is 50 cycles.
  • The operating temperature range for the 353171020 connector is -40°C to 105°C.
  • Yes, the 353171020 connector is designed to withstand high-vibration applications, with a vibration frequency range of 10-2000 Hz.
  • The recommended torque for securing the 353171020 connector is 0.5-1.5 Nm.
  • Yes, the 353171020 connector is designed for automated assembly processes, including pick-and-place and wire-termination machines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

353171020 Overview

Use the download button to access the 353171020 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 35317, or try a keyword search, such as Power Connectors
