35318-1220 - Molex

Description: 4.20mm Pitch Mini-Fit Header, Dual Row, Right-Angle, 12 Circuits, PA Polyamide (Nylon) 6/6 94V-2, White

Download 35318-1220 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
35318-1220 - Molex - PCB symbol
click to zoom
PCB Footprints

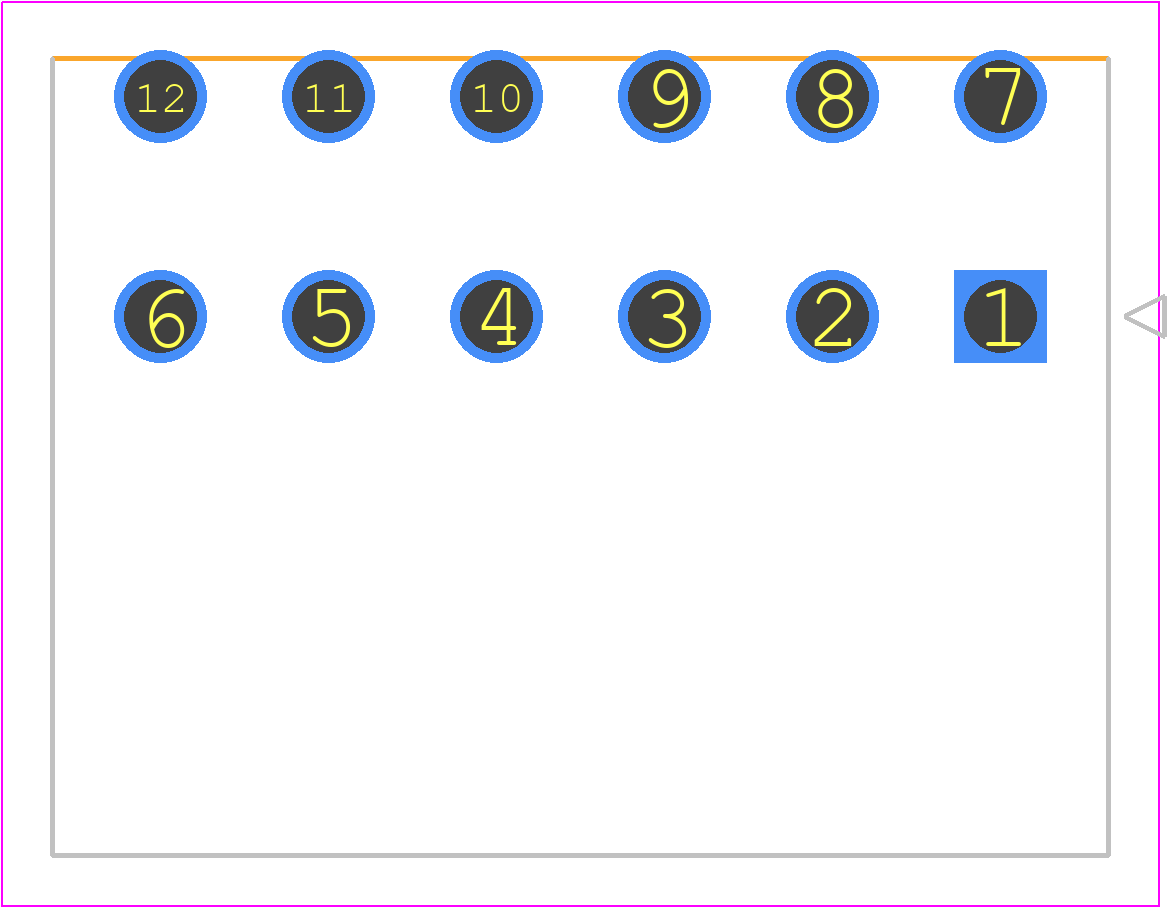

35318-1220 - Molex PCB footprint - Other - Other - 35318-12Y0_12
click to zoom
3D Models
35318-1220 - Molex - 3D model - Other - 35318-12Y0_12
click to zoom

35318-1220 Details

  • Manufacturer Part Number:

    35318-1220

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.75

  • Body Breadth:

    0.377 inch

  • Body Depth:

    0.763 inch

  • Body Length:

    1.205 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P12

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1500VAC V

  • Durability:

    30 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    FRICTION LOCK

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Plating Thickness:

    200u inch

  • Reference Standard:

    CSA, UL

  • Terminal Length:

    0.245 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-2

35318-1220 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 35318-1220 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 35318-1220 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and construction can withstand some environmental stress, but it's not designed for extreme outdoor or harsh environmental use.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 35318-1220 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire can withstand the connector's current rating. Consult with a Molex representative or a qualified engineer for guidance on using non-recommended wire sizes.
  • The 35318-1220 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

35318-1220 Overview

Use the download button to access the 35318-1220 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 35318, or try a keyword search, such as Power Connectors

About Molex
