35318-1620 - Molex

Description: 4.20mm Pitch Mini-Fit Header, Dual Row, Right-Angle, 16 Circuits, PA Polyamide (Nylon) 6/6 94V-2, White

Download 35318-1620 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
35318-1620 - Molex - PCB symbol
click to zoom
PCB Footprints

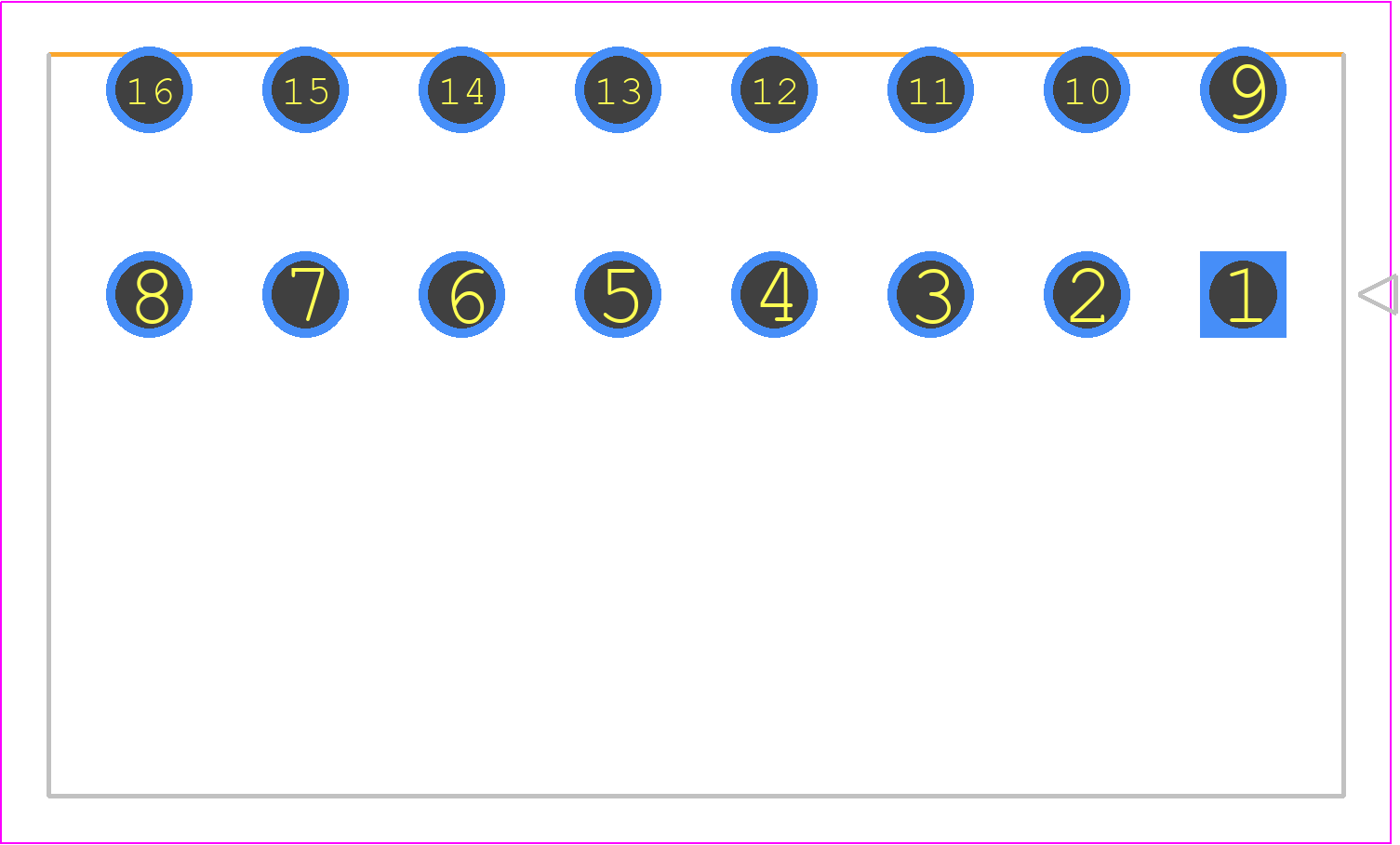

35318-1620 - Molex PCB footprint - Other - Other - 35318-16Y0_12
click to zoom
3D Models
35318-1620 - Molex - 3D model - Other - 35318-16Y0_12
click to zoom

35318-1620 Details

  • Manufacturer Part Number:

    35318-1620

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Body Breadth:

    0.377 inch

  • Body Depth:

    0.763 inch

  • Body Length:

    1.535 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P16

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1500VAC V

  • Durability:

    30 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    FRICTION LOCK

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Plating Thickness:

    200u inch

  • Reference Standard:

    CSA, UL

  • Terminal Length:

    0.245 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-2

35318-1620 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 35318-1620 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 35318-1620 connector has a IP67 rating, which means it can withstand temporary immersion in water and is suitable for outdoor or harsh environmental applications. However, it's essential to ensure proper sealing and protection of the connector to maintain its IP67 rating.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 35318-1620 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire can withstand the maximum current rating of the connector.
  • The 35318-1620 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

35318-1620 Overview

Use the download button to access the 35318-1620 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 35318, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
