353830-5 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Positions 72 | Number of Sections 3 | PCB Mount Orientation Horizontal | Number of Rows 3 | Number of Signal Positions 72 | Contact Features: Mating Tab Width 1 MM | Mating Tab Width .039 INCH | Mating Tab Thickness .64 MM | Contact Size 1mm | Contact Type Tab | Mating Tab Thickness .025 INCH | Contact Mating Area Plating Material Tin | Dimensions: Connector Length 33.85 MM | Profile Height from PCB 22.5 MM | Connector Length 1

Download 353830-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
353830-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

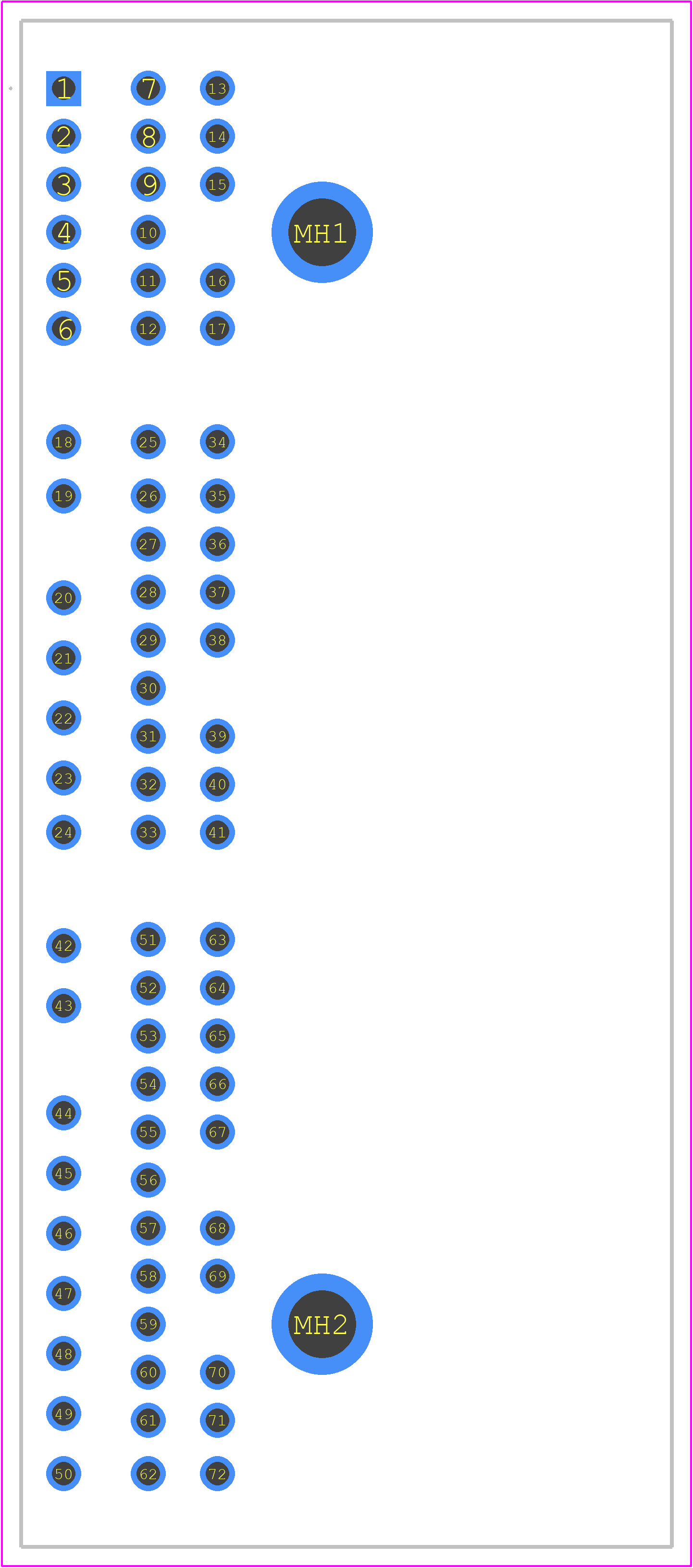

353830-5 - TE Connectivity PCB footprint - Other - Other - 353830-5-3
click to zoom
3D Models
353830-5 - TE Connectivity - 3D model - Other - 353830-5-3
click to zoom

353830-5 Details

  • Manufacturer Part Number:

    353830-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body Breadth:

    3.126 inch

  • Body Length:

    1.333 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    72

353830-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 353830-5 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines.
  • To ensure reliable connections in high-temperature environments, it's essential to follow proper termination techniques, use high-temperature-rated wire and insulation, and consider using thermal interface materials or heat sinks to dissipate heat.
  • The 353830-5 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing, protection, and environmental considerations. Consult TE Connectivity's environmental specifications and guidelines for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

353830-5 Overview

Use the download button to access the 353830-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 35383, or try a keyword search, such as Headers and Edge Type Connectors
