354055-E - TE Connectivity

Description: Body Features: Connector Profile Low | Primary Product Color Black | Configuration Features: Number of Positions 16 | Stackable Yes | Number of Rows 2 | Number of Columns 8 | PCB Mount Orientation Vertical | Board-to-Board Configuration Parallel | Connector Contact Load Condition Fully Loaded | Number of Loaded Positions 16 | Stacking Configuration Stack Through | Contact Features: Contact Mating Area Plating Material Gold (Au) | PCB Contact Termination Area Plating Material Tin | Contact Shape & Form Dual

Download 354055-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

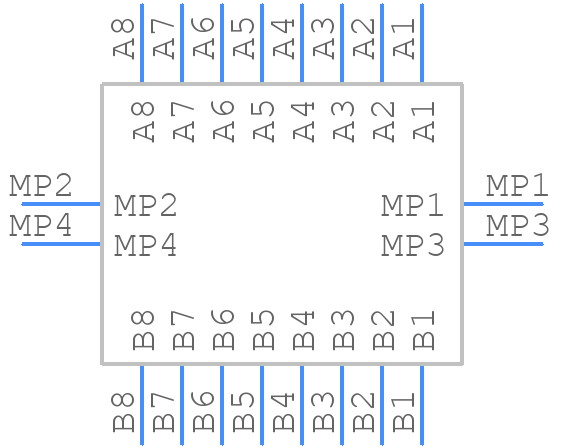

354055-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
354055-E - TE Connectivity PCB footprint - Other - Other - 354055-E-2
click to zoom
3D Models
354055-E - TE Connectivity - 3D model - Other - 354055-E-2
click to zoom

354055-E Details

  • Manufacturer Part Number:

    354055-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Board Mounting Option:

    LOCATING POST

  • Body Breadth:

    0.276 inch

  • Body Depth:

    0.246 inch

  • Body Length:

    0.6 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.7A

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1.7 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

354055-E Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 354055-E connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 354055-E connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating. Additionally, the connector's materials are resistant to UV and salt spray, making it suitable for outdoor use.
  • The 354055-E connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet specifies 24-18 AWG wire sizes, it's possible to use the 354055-E connector with other wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure the connector's performance and reliability are not compromised.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

354055-E Overview

Use the download button to access the 354055-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 35405, or try a keyword search, such as Headers and Edge Type Connectors
