The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
Yes, the 354080-E connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
Yes, the 354080-E connector has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
The operating temperature range of the 354080-E connector is -40°C to 125°C (-40°F to 257°F).
Yes, the 354080-E connector can accommodate wire sizes ranging from 16 AWG to 20 AWG, but the recommended wire size is 18 AWG.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
354080-E Overview

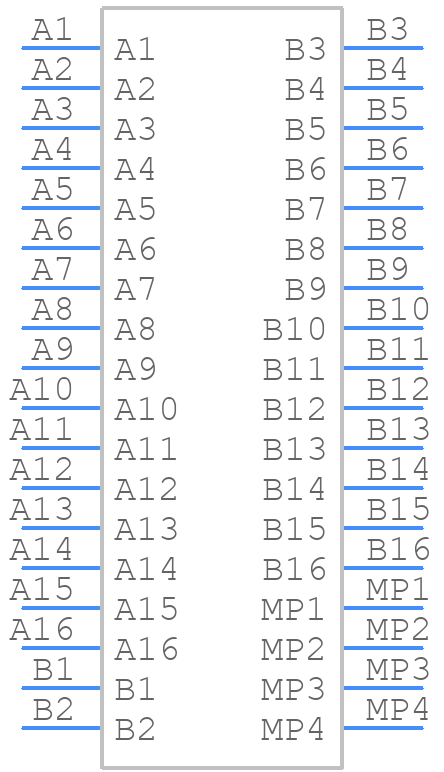

Use the download button to access the 354080-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 35408,
or try a keyword search, such as Headers and Edge Type Connectors
