354094-E - TE Connectivity

Description: PCB Mount Header, Right Angle, Board-to-Board, 16 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI SMC

Download 354094-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

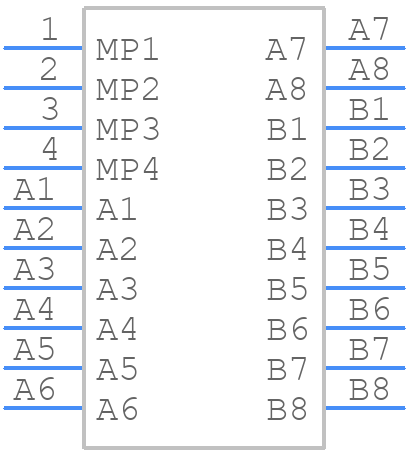

354094-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
354094-E - TE Connectivity PCB footprint - Other - Other - 354094-E-2
click to zoom

354094-E Details

  • Manufacturer Part Number:

    354094-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.4

  • Board Mounting Option:

    LOCATING POST

  • Body Breadth:

    0.394 inch

  • Body Depth:

    0.167 inch

  • Body Length:

    0.6 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.7A

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1.7 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

354094-E Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 354094-E connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet recommends AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with some adjustments to the wire stripping and termination process. However, using larger wire sizes may not be possible due to the connector's design constraints.
  • To ensure reliable connections in high-temperature environments, it's essential to follow proper termination techniques, use high-temperature-rated wire and insulation, and consider using thermal interface materials or heat sinks to dissipate heat away from the connector.
  • The 354094-E connector is designed to operate in a variety of environments, including those with high humidity. However, exposure to certain chemicals or extreme environmental conditions may affect the connector's performance and longevity. It's essential to consult with TE Connectivity or a qualified engineer to determine the connector's suitability for specific harsh environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

354094-E Overview

Use the download button to access the 354094-E schematic symbol and PCB footprint.
