Part Image

354097-E - TE Connectivity

Description: PCB Mount Header, Right Angle, Board-to-Board, 40 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI SMC

Download 354097-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

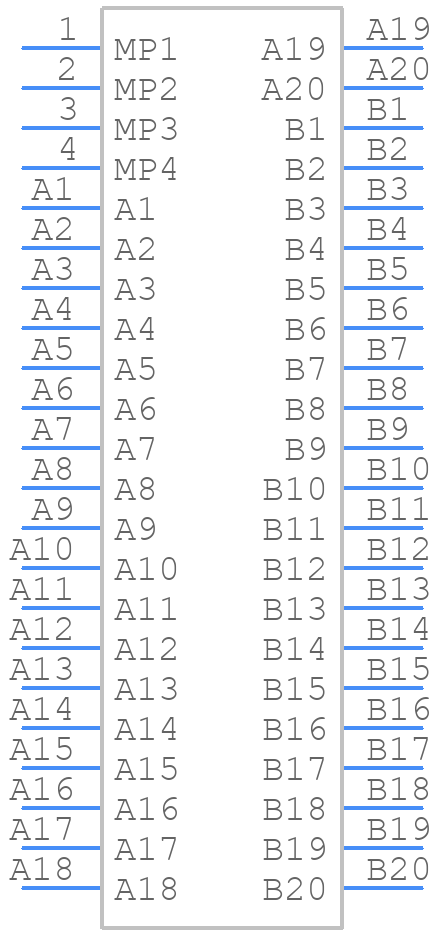

Symbol
354097-E - TE Connectivity - PCB symbol
click to zoom

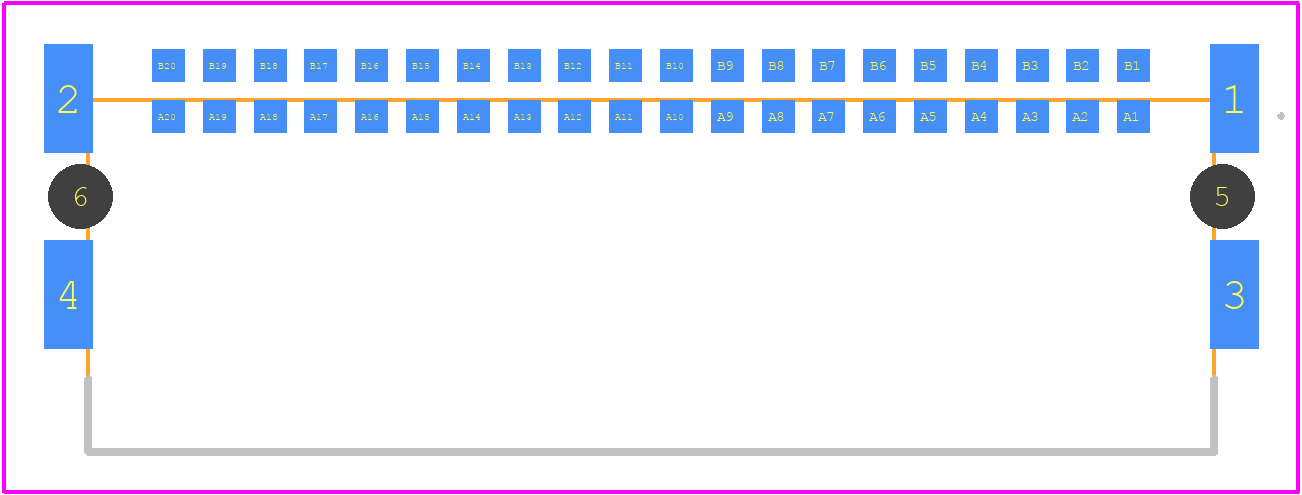

PCB Footprints
354097-E - TE Connectivity PCB footprint - Other - Other - 354097-E-2
click to zoom
3D Models
354097-E - TE Connectivity - 3D model - Other - 354097-E-2
click to zoom

354097-E Details

  • Manufacturer Part Number:

    354097-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.4

  • Board Mounting Option:

    LOCATING POST

  • Body Breadth:

    0.394 inch

  • Body Depth:

    0.167 inch

  • Body Length:

    1.2 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.7A

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1.7 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

354097-E Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 354097-E connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet recommends AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with some adjustments. However, using larger wire sizes may not be possible due to the connector's design constraints. Consult with TE Connectivity or a qualified engineer for specific guidance.
  • To ensure reliable connections in high-temperature environments, make sure to follow proper termination techniques, use the recommended wire insulation, and apply a suitable contact lubricant. Additionally, consider using a connector with a higher temperature rating or a specialized high-temperature connector.
  • The 354097-E connector is designed for general-purpose applications and may not be suitable for harsh environments. If you need to use the connector in such environments, consider using a connector with specialized coatings or materials, such as those with IP67 or IP69K ratings, or consult with TE Connectivity for customized solutions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

354097-E Overview

Use the download button to access the 354097-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 35409, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
