354150-E footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

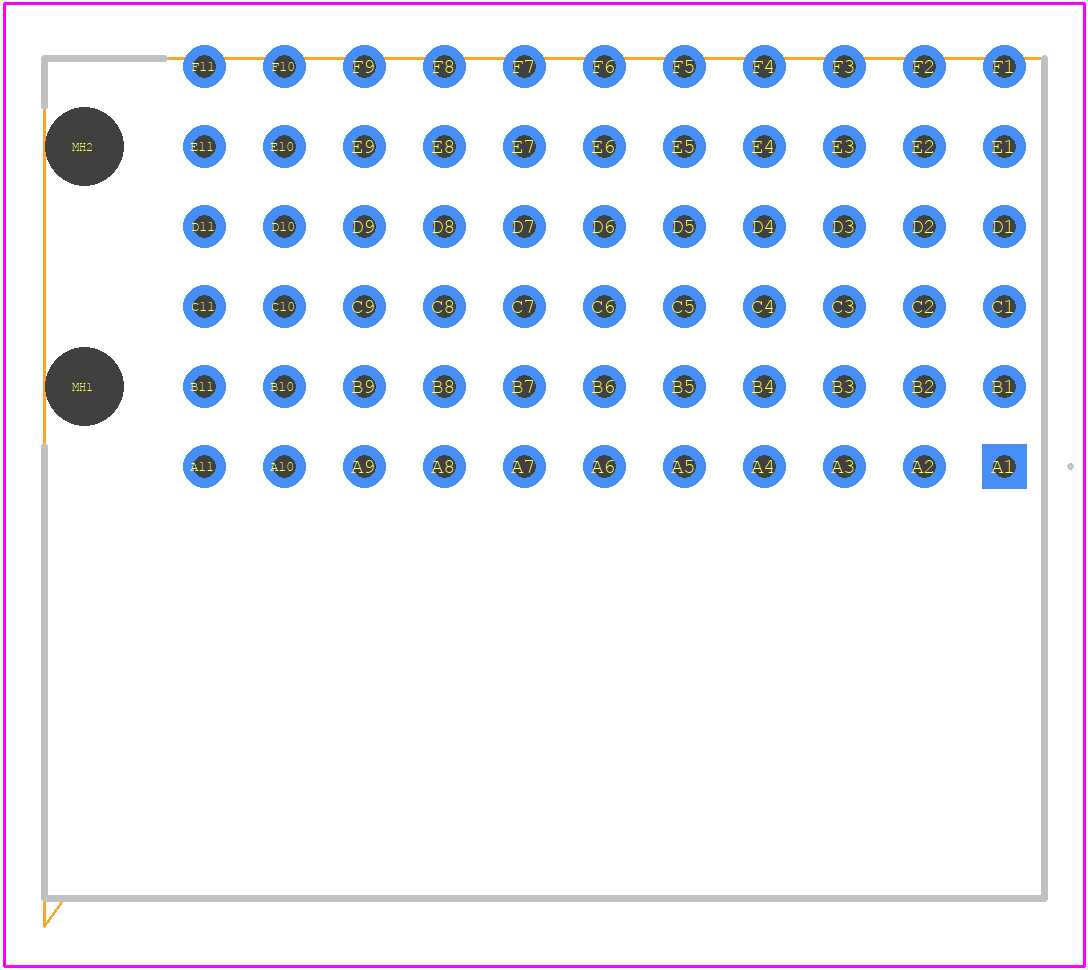

PCB Footprints

354150-E - TE Connectivity PCB footprint - Other - Other - 354150-E-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 354150-E
Part Number 354150-E
Manufacturer TE Connectivity
Pin Count 66
Part Category Connector
Package Category Other
Footprint Name Other - 354150-E-3
Released Date Oct 3, 2023
Last Modified Date Jan 29, 2026 11:52 PM UTC
Pinout / Pin List Click Here (Member Only)

354150-E Details

Manufacturer Part Number:
354150-E
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
YTEOL:
0
Board Mounting Option:
PEG
Body Breadth:
0.482 inch
Body Depth:
0.827 inch
Body Length:
0.984 inch
Body/Shell Style:
PLUG
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
20 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Dielectric Withstanding Voltage:
1050VAC V
Durability:
250 Cycles
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
10000000000 Ω
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mating Contact Pitch:
0.079 inch
Mating Contact Row Spacing:
0.079 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
6
Number of Rows Loaded:
5
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.0066 mm
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1 A
Reference Standard:
UL
Terminal Length:
0.118 inch
Terminal Pitch:
2 mm
Termination Type:
PRESS FIT
Total Number of Contacts:
55

354150-E Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 354150-E connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
Yes, the 354150-E connector is part of TE Connectivity's modular connector family and is designed to be compatible with other products in the same family. However, it's always recommended to verify compatibility before using the connector with other TE products or third-party components.
The 354150-E connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
The 354150-E connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended to use the connector in environments with exposure to harsh chemicals or prolonged immersion in water.
