Symbol

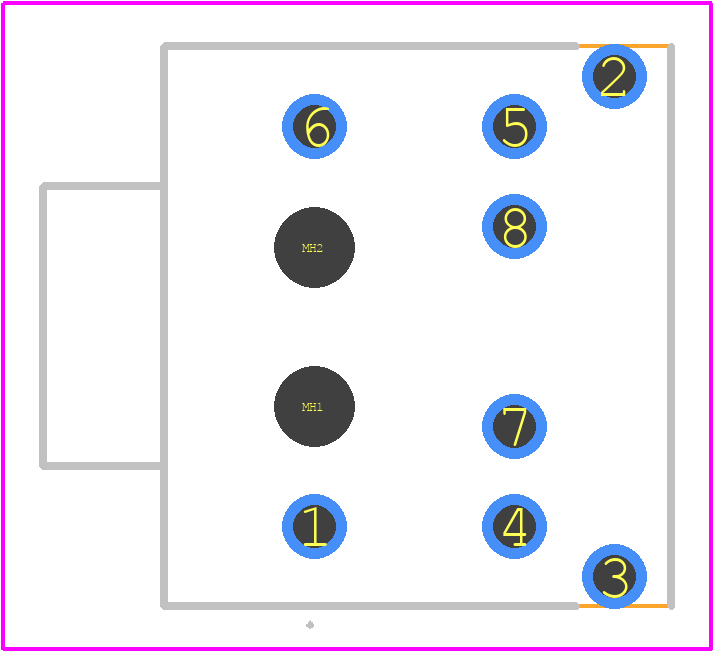

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 35RAPC7J
- Part Number 35RAPC7J
- Manufacturer Switchcraft
- Pin Count 8
- Part Category Connector
- Package Category Other
- Footprint Name Other - 35RAPC7J-1
- Released Date Apr 26, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
35RAPC7J Details
-
Manufacturer Part Number:
35RAPC7J
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Switchcraft Conxall
-
Additional Feature:
LCP
-
Body/Shell Style:
JACK
-
Configuration:
2X1 HORIZONTAL
-
Connector Type:
3.5MM AUDIO
35RAPC7J Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
-
Yes, the connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
-
The maximum operating frequency for the 35RAPC7J connector is 3 GHz.
-
Yes, the connector is designed to withstand high-vibration environments and is suitable for use in applications such as aerospace, automotive, and industrial control systems.
-
Yes, the 35RAPC7J connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
Trust Checks
Community Provided
System Verified
Community Approved
35RAPC7J Overview
Use the download button to access the 35RAPC7J schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 35RAP,
or try a keyword search, such as Audio/RCA Connectors
