The recommended PCB layout and land pattern can be found in the Coto Technology application note AN-105, which provides guidelines for optimal PCB design and assembly.
To ensure reliable switching and minimize contact bounce, it's recommended to use a debounce circuit or a capacitor in parallel with the relay coil to reduce contact bounce and ensure clean switching.
The maximum allowable voltage drop across the relay coil is 20% of the nominal coil voltage. Exceeding this limit may affect relay performance and lifespan.
The 3602-05-52 is rated for operation up to 85°C. For high-temperature applications, consider using a relay with a higher temperature rating or consulting with Coto Technology's application engineers for custom solutions.
To minimize EMI and RFI, use proper shielding, grounding, and layout techniques. Consider adding EMI filters or shielding components to your design, and consult with Coto Technology's application engineers for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
3602-05-52 Overview

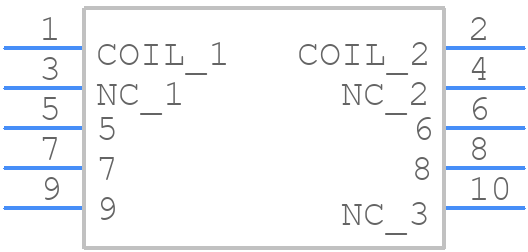

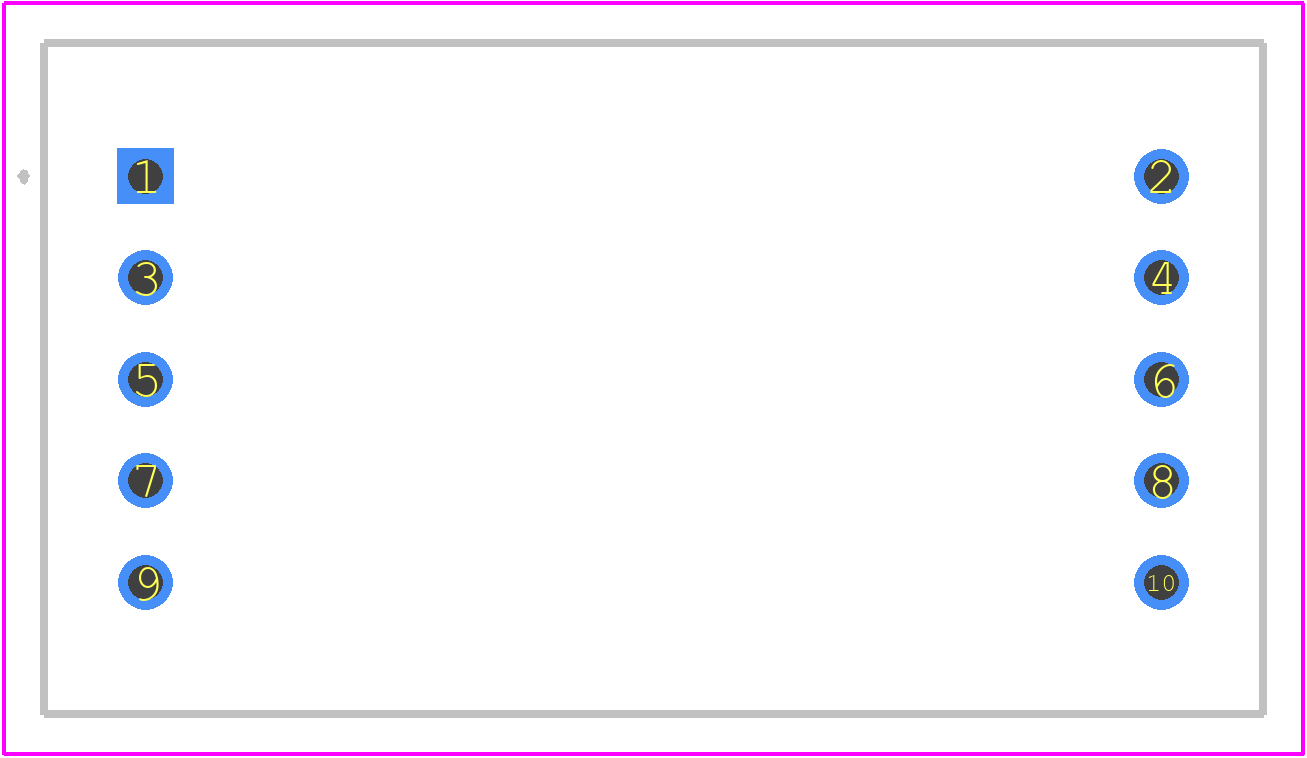

Use the download button to access the 3602-05-52 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3602-,
or try a keyword search, such as Reed Relays
