Coto Technology provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical stress.
To prevent damage to the relay, it's crucial to handle the device in a way that minimizes exposure to strong magnetic fields, such as those generated by magnets, motors, or transformers. Use anti-static wrist straps, mats, or trays to prevent electrostatic discharge (ESD) damage.
While the datasheet specifies the maximum operating voltage, it may not provide information on voltage transients or spikes. Coto Technology's application engineers can provide guidance on the relay's tolerance to voltage transients, which may depend on the specific application and environment.
The relay's operating temperature range is specified in the datasheet, but derating factors for high-temperature operation may not be explicitly stated. Consult with Coto Technology's application engineers to determine the relay's performance and reliability in high-temperature environments.
The relay's lifespan depends on various factors, including operating conditions, switching frequency, and load characteristics. Coto Technology can provide guidance on the relay's expected lifespan and how it may impact system reliability. It's essential to consider the relay's lifespan when designing and specifying the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
3650-12-52 Overview

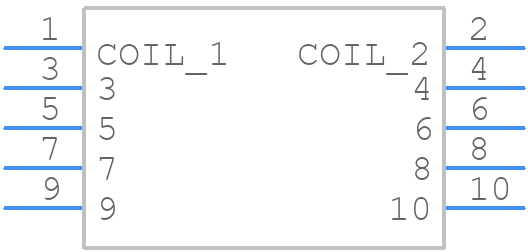

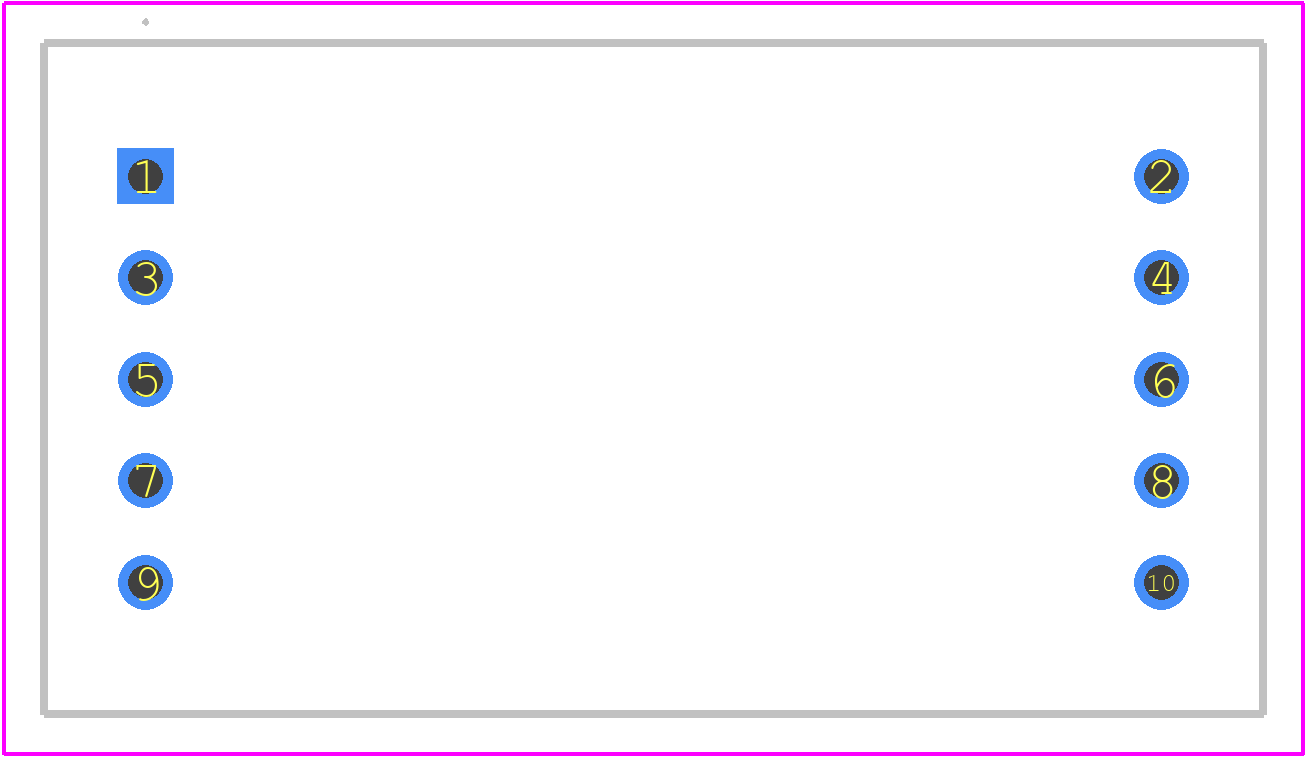

Use the download button to access the 3650-12-52 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3650-,
or try a keyword search, such as Reed Relays
