365046-1 - TE Connectivity

Description: Configuration Features: PCB Mount Orientation Vertical | Number of Positions 9 | Number of Rows 3 | Number of Power Positions 9 | Contact Features: PCB Contact Termination Area Plating Material Pre-Tin | Multiple Contact Types Without | PCB Contact Termination Area Plating Material Thickness 100 MICIN | Contact Current Rating (Max) 17 AMP | Contact Retention Within Housing Without | PCB Contact Termination Area Plating Material Thickness 2.54 MICM | Contact Layout Matrix | Contact Mating Area Plating Materi

Download 365046-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
365046-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

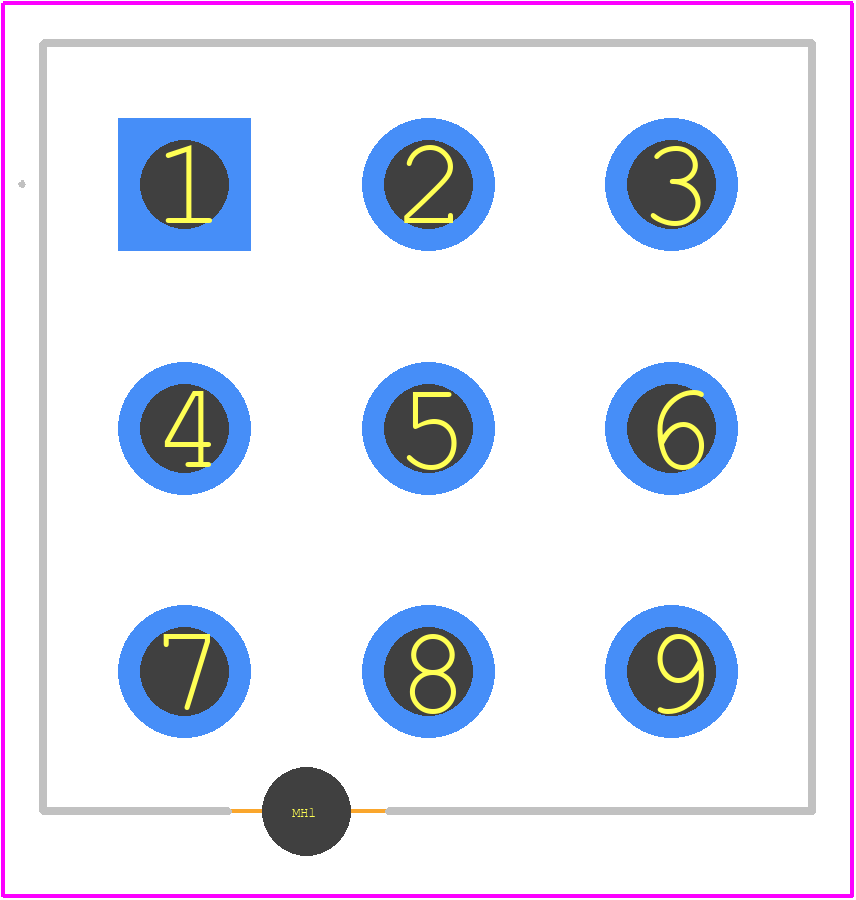

365046-1 - TE Connectivity PCB footprint - Other - Other - 365046-1-2
click to zoom
3D Models
365046-1 - TE Connectivity - 3D model - Other - 365046-1-2
click to zoom

365046-1 Details

  • Manufacturer Part Number:

    365046-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    25 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    MATE-N-LOK

  • Body Breadth:

    0.755 inch

  • Body Depth:

    0.732 inch

  • Body Length:

    0.755 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    17A

  • Mating Contact Row Spacing:

    0.24 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    17 A

  • Reference Standard:

    CSA, UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    6.1 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-2

365046-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 365046-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Category 2 vibration standard, making it suitable for use in applications with high vibration levels.
  • The 365046-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
  • Yes, the 365046-1 connector is designed to withstand harsh environments. It has a sealed construction and meets the IP67 rating, making it suitable for use in applications with high humidity, exposure to chemicals, or other environmental stressors.
  • While the 365046-1 connector is optimized for use with AWG 20-24 wires, it can accommodate other wire sizes. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to maintain reliable connections and prevent damage.
