36509-0044 - Molex

36509-0044 Details

• Manufacturer Part Number:

  36509-0044

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Molex

• YTEOL:

  0

• Body Breadth:

  0.417 inch

• Body Length:

  3.701 inch

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  TIN OVER NICKEL

• Contact Gender:

  FEMALE

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  YES

• Filter Feature:

  NO

• Insulator Color:

  GRAY

• Insulator Material:

  GLASS FILLED POLYESTER

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.2 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Name of Rows Loaded:

  A,C

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

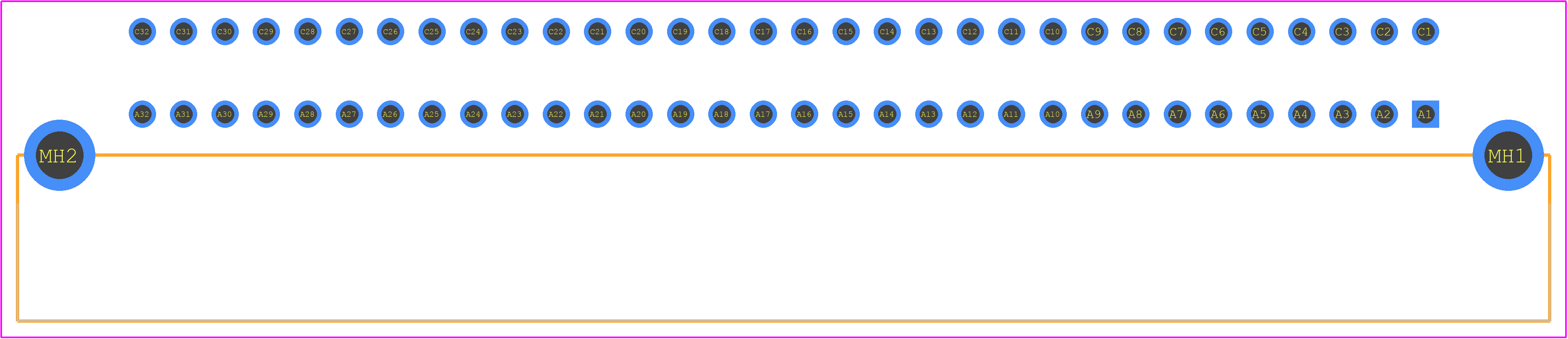

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.08 mm

• Plating Thickness:

  23u inch

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Length:

  0.118 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  96
