3700-0121-01 - MH CONNECTORS

Description: Male 68 way Right angle SCSI 2.54mm MH Connectors SCSI Series, Male 68 Way Right Angle Through Hole SCSI Connector 2.54mm Pitch, Solder

Download 3700-0121-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3700-0121-01 - MH CONNECTORS - PCB symbol
click to zoom
PCB Footprints

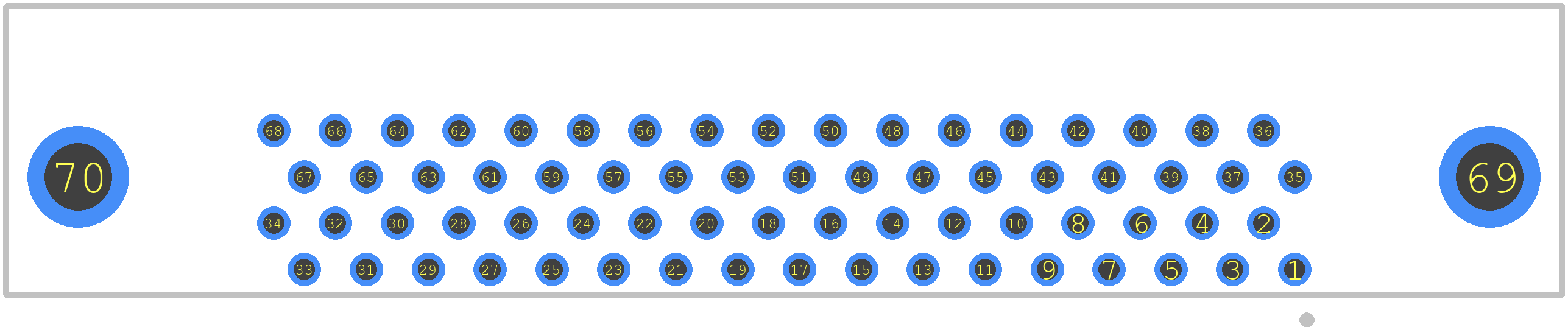

3700-0121-01 - MH CONNECTORS PCB footprint - Other - Other - 3700-0121-01
click to zoom
3D Models
3700-0121-01 - MH CONNECTORS - 3D model - Other - 3700-0121-01
click to zoom

3700-0121-01 Details

  • Manufacturer Part Number:

    3700-0121-01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    MH Connectors

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER/POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    68

  • UL Flammability Code:

    94V-0

3700-0121-01 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals to ensure secure connections.
  • Yes, the 3700-0121-01 connector is designed to withstand high-vibration environments, but it's recommended to consult with MH Connectors or a qualified engineer to ensure proper installation and securement.
  • The operating temperature range for the 3700-0121-01 connector is -40°C to 125°C (-40°F to 257°F), but it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 3700-0121-01 connector has a sealed design, but it's still important to consider the specific environmental conditions and potential exposure to moisture, dust, or other contaminants. Consult with MH Connectors or a qualified engineer to determine the connector's suitability for your specific application.
  • The maximum current rating for the 3700-0121-01 connector is 3A per contact, but it's essential to consider the specific application, wire size, and insulation to ensure safe and reliable operation.
