37411600410 - LITTELFUSE

Description: Fuses with Leads (Through Hole) 250V UL TL SL 1.6A TR5

Download 37411600410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
37411600410 - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

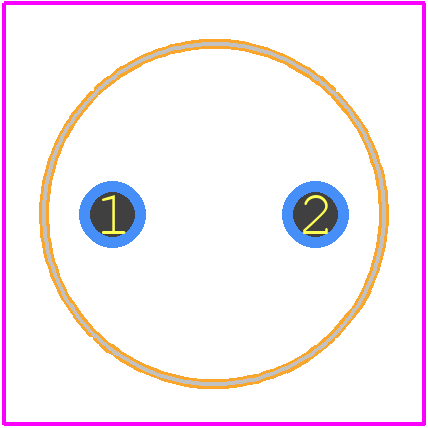

37411600410 - LITTELFUSE PCB footprint - Other - Other - 37411600410-2
click to zoom
3D Models
37411600410 - LITTELFUSE - 3D model - Other - 37411600410-2
click to zoom

37411600410 Details

  • Manufacturer Part Number:

    37411600410

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.10.00.40

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.75

  • Blow Characteristic:

    TIME LAG

  • Body Height:

    8 mm

  • Body Length or Diameter:

    8.5 mm

  • Circuit Protection Type:

    ELECTRIC FUSE

  • Fuse Size:

    TR5

  • JESD-609 Code:

    e3

  • Joule Integral-Nom:

    6 J

  • Mounting Feature:

    THROUGH HOLE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BULK

  • Rated Breaking Capacity:

    50 A

  • Rated Current:

    1.6 A

  • Rated Voltage(AC):

    250 V

  • Reference Standard:

    CSA; CUL; UL

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    PIN WIRE

  • Trip Time or Delay:

    60 s

37411600410 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the 37411600410 is -40°C to 125°C, as per the manufacturer's guidelines.
  • Yes, the 37411600410 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.
  • To ensure proper soldering, follow the manufacturer's recommended soldering profile, and use a solder with a melting point above 217°C. Also, ensure the component is clean and free of oxidation before soldering.
  • The maximum surge current rating for the 37411600410 is 100A, as specified in the datasheet. However, it's essential to consider the application's specific requirements and consult with the manufacturer if you have any doubts.
  • Yes, the 37411600410 is compatible with lead-free soldering processes, but it's crucial to follow the manufacturer's recommended soldering profile and guidelines to ensure optimal performance.
