38660-8804 - Molex

Description: MOLEX - 38660-8804 - TERMINAL BLOCK, BARRIER, 4 POSITION, 18-8AWG

Download 38660-8804 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
38660-8804 - Molex - PCB symbol
click to zoom
PCB Footprints

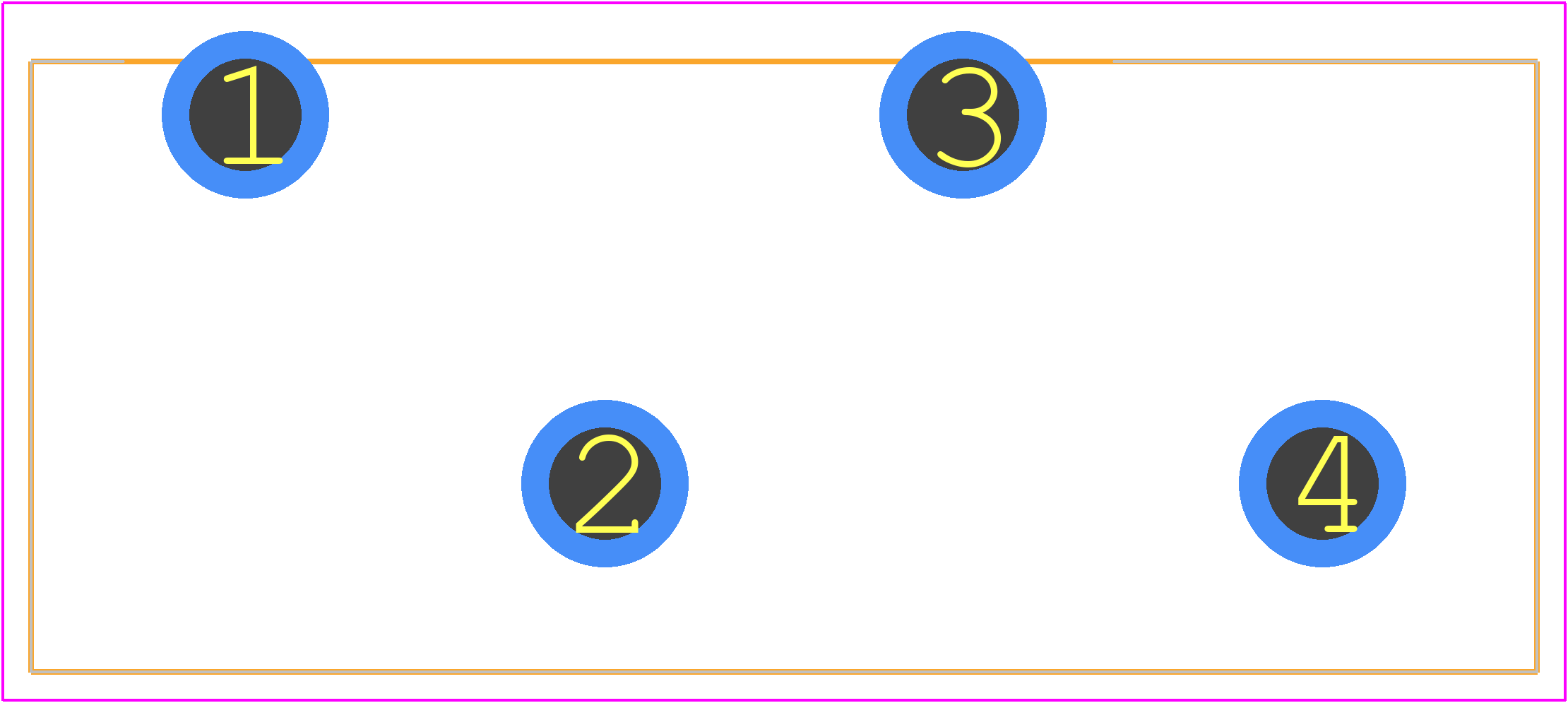

38660-8804 - Molex PCB footprint - Other - Other - 38660-8804
click to zoom
3D Models
38660-8804 - Molex - 3D model - Other - 38660-8804
click to zoom

38660-8804 Details

  • Manufacturer Part Number:

    38660-8804

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

38660-8804 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 38660-8804 connector is designed to withstand high-vibration environments, but it's recommended to follow Molex's guidelines for vibration testing and to consult with a Molex representative for specific application guidance.
  • The operating temperature range for the 38660-8804 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 38660-8804 connector is compatible with lead-free soldering processes, but it's recommended to follow Molex's guidelines for soldering and to consult with a Molex representative for specific application guidance.
  • The mating cycle life of the 38660-8804 connector is 500 cycles minimum.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

38660-8804 Overview

Use the download button to access the 38660-8804 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 38660, or try a keyword search, such as Terminals and Terminal Blocks
