38720-6204 - Molex

Description: Conn Barrier Strip 4 POS 9.53mm Solder ST Thru-Hole 15A/Contact

Download 38720-6204 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
38720-6204 - Molex - PCB symbol
click to zoom
PCB Footprints

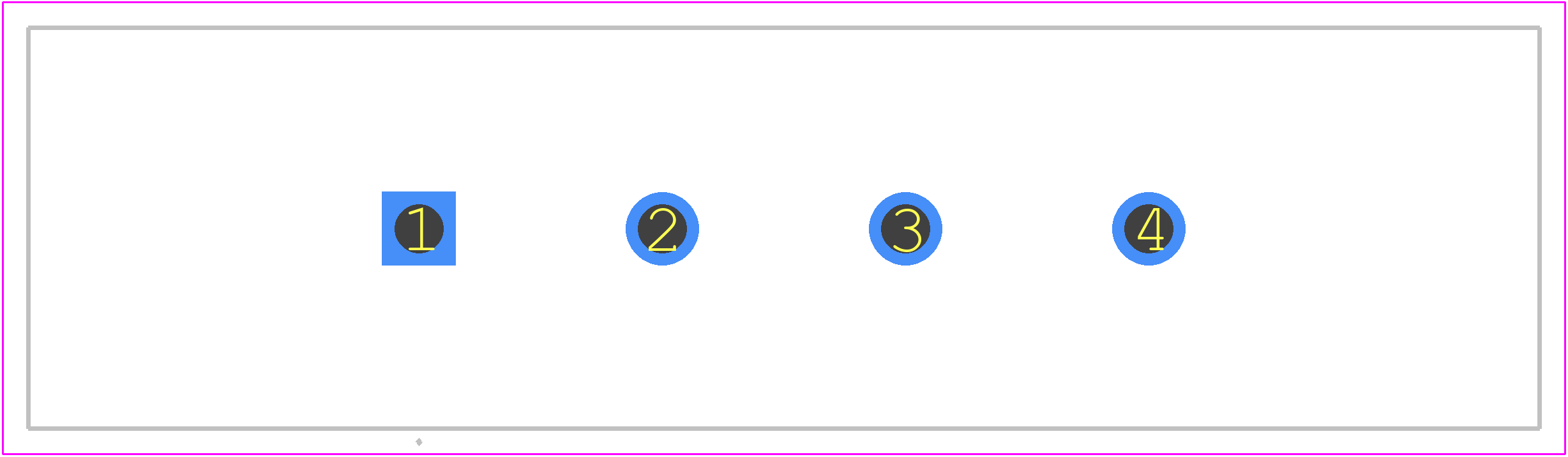

38720-6204 - Molex PCB footprint - Other - Other - 38720-6204-2
click to zoom
3D Models
38720-6204 - Molex - 3D model - Other - 38720-6204-2
click to zoom

38720-6204 Details

  • Manufacturer Part Number:

    38720-6204

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Fastening Method:

    SCREW

  • Mounting Type:

    PANEL

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Gauge:

    6 AWG

38720-6204 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 38720-6204 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 38720-6204 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 38720-6204 is designed to be used in outdoor environments and can withstand exposure to moisture and humidity.
  • No, the 38720-6204 is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

38720-6204 Overview

Use the download button to access the 38720-6204 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 38720, or try a keyword search, such as Terminals and Terminal Blocks
