The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
Yes, the connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for high-vibration applications.
The operating temperature range of the 38720-6210 connector is -40°C to 105°C (-40°F to 221°F).
Yes, the connector is designed for automated assembly and can be used with pick-and-place machines and other automation equipment.
The mating cycle life of the 38720-6210 connector is 500 cycles minimum.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
38720-6210 Overview

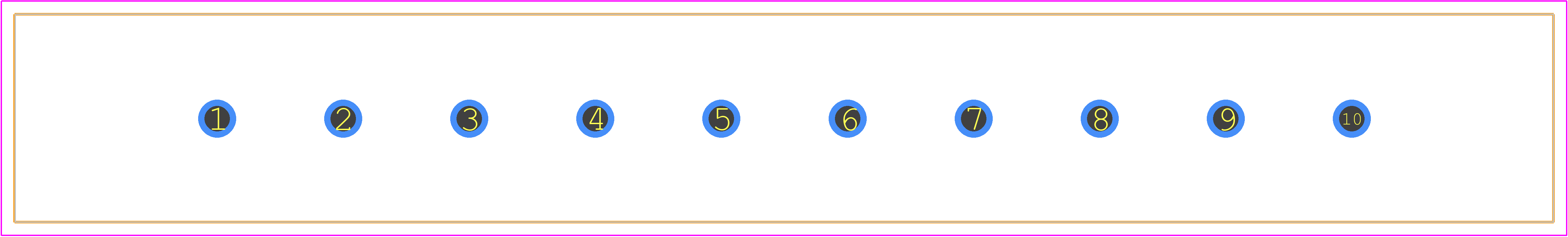

Use the download button to access the 38720-6210 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 38720,
or try a keyword search, such as Terminals and Terminal Blocks
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
