38720-6304 - Molex

Description: Barrier Terminal Blocks .375 PCB 4P PC STYLE no mounting ends

Download 38720-6304 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
38720-6304 - Molex - PCB symbol
click to zoom
PCB Footprints

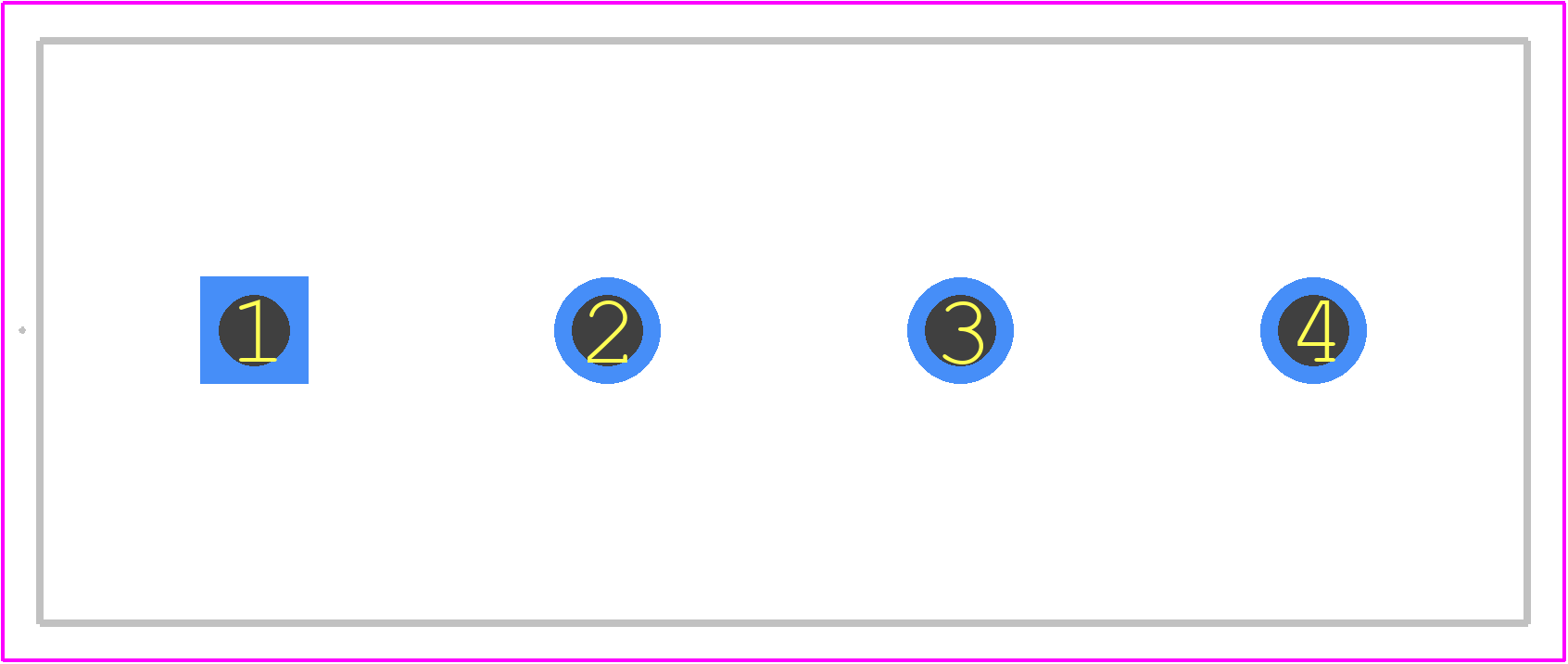

38720-6304 - Molex PCB footprint - Other - Other - 38720-6304-2
click to zoom
3D Models
38720-6304 - Molex - 3D model - Other - 38720-6304-2
click to zoom

38720-6304 Details

  • Manufacturer Part Number:

    38720-6304

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Hong Kong SAR, Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    THERMOPLASTIC

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

38720-6304 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 38720-6304 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 38720-6304 connector is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
  • Yes, the 38720-6304 connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
  • The recommended wire size for the 38720-6304 connector is 24-20 AWG (0.25-0.5 mm²) to ensure reliable connections and minimize wire damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

38720-6304 Overview

Use the download button to access the 38720-6304 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 38720, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
