38720-6305 - Molex

Description: 5 Circuit 0.375" (9.53mm) Barrier Block Connector Screws 15A 300V 14-22AWG PC PIN Through Hole -40°C ~ 100°C

Download 38720-6305 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
38720-6305 - Molex - PCB symbol
click to zoom
PCB Footprints

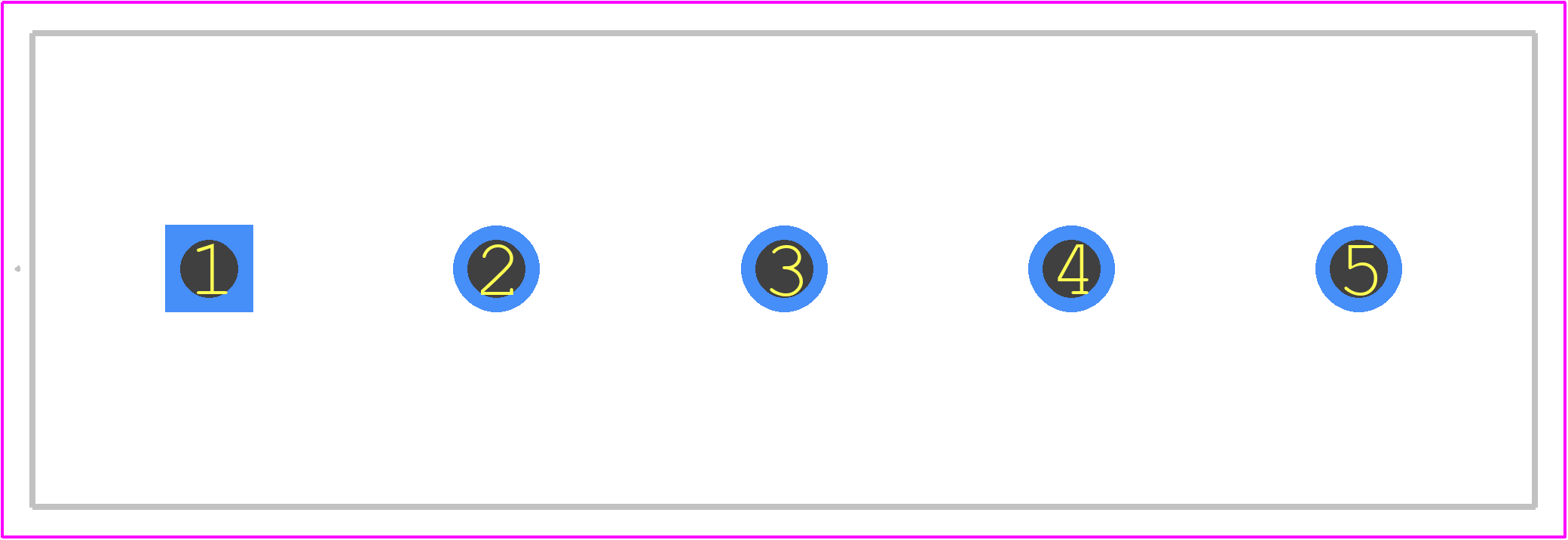

38720-6305 - Molex PCB footprint - Other - Other - 38720-6305-1
click to zoom
3D Models
38720-6305 - Molex - 3D model - Other - 38720-6305-1
click to zoom

38720-6305 Details

  • Manufacturer Part Number:

    38720-6305

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mexico, Taiwan, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    THERMOPLASTIC

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

38720-6305 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on the 38720-6305 connector is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 38720-6305 connector is designed to withstand high-vibration environments, but it's recommended to follow Molex's guidelines for vibration testing and to consult with a Molex representative for specific application requirements.
  • The maximum operating temperature for the 38720-6305 connector is 125°C (257°F), but it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
  • The 38720-6305 connector is designed to meet IP67 standards for ingress protection, but it's recommended to consult with a Molex representative for specific guidance on using the connector in harsh environments.
  • The recommended wire gauge for the 38720-6305 connector is 20-24 AWG (0.5-0.25 mm²).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

38720-6305 Overview

Use the download button to access the 38720-6305 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 38720, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
