38720-6306 - Molex

Description: Barrier Terminal Blocks .375 PCB 6P PC STYLE no mounting ends

Download 38720-6306 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
38720-6306 - Molex - PCB symbol
click to zoom
PCB Footprints

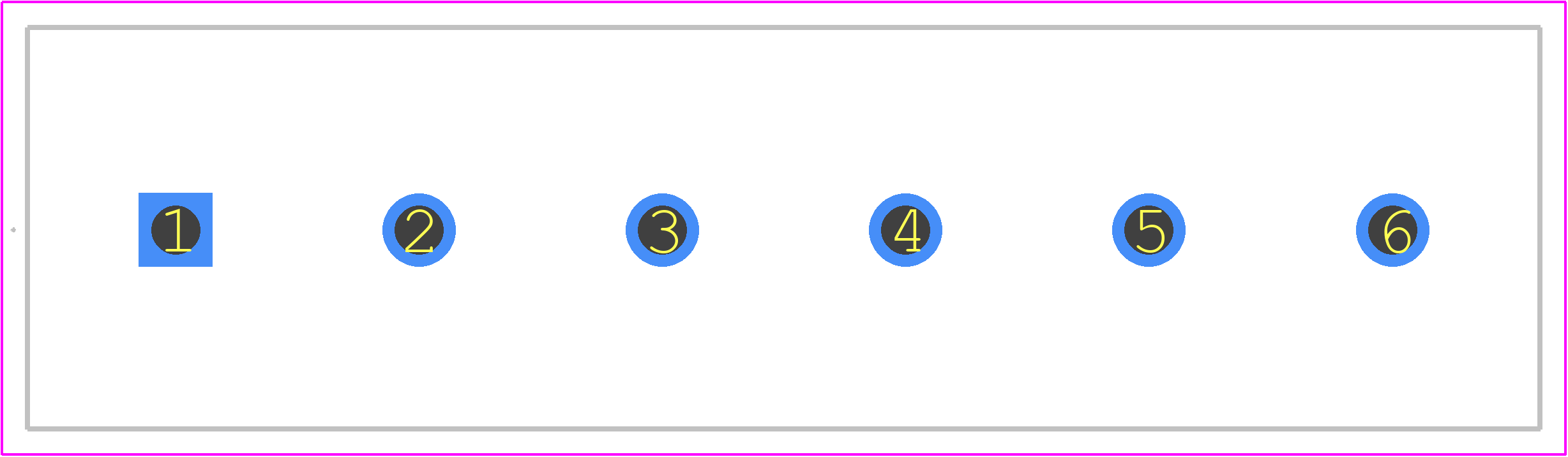

38720-6306 - Molex PCB footprint - Other - Other - 38720-6306-1
click to zoom
3D Models
38720-6306 - Molex - 3D model - Other - 38720-6306-1
click to zoom

38720-6306 Details

  • Manufacturer Part Number:

    38720-6306

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    THERMOPLASTIC

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK
